DIN-120RSC-SR1-HM

Active

CONN DIN RCPT 120POS

Search across all available documentation for this part.

Active

CONN DIN RCPT 120POS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

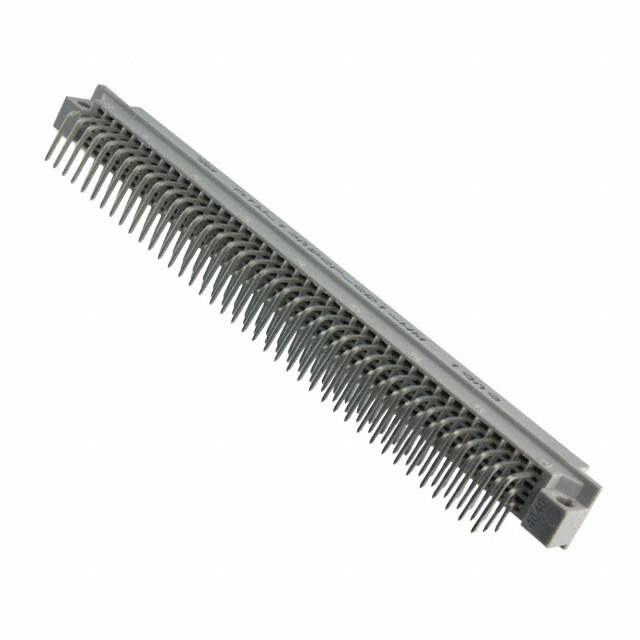

120 Position Din Connector Receptacle, Female Sockets Gold Through Hole, Right Angle

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	DIN-120RSC-SR1-HM	DIN-120R Series

Connector Type	Receptacle, Female Sockets	Plug, Male Pins, Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	3 Áin	3 - 30 Áin
Contact Finish Thickness	0.076 Ám	0.076 - 0.76 Ám
Current Rating (Amps)	3 A	3 A
Material - Insulation	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle
Number of Positions	120	120
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Style	R	R
Termination	Solder	Press-Fit, Solder

CONN DIN PLUG 120POS PCB GOLD

Part	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Pitch [x]	Pitch [x]	Connector Type	Contact Finish	Material Flammability Rating	Style	Material - Insulation	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded	Termination	Mounting Type
3M DIN-120RPC-DPS-TR	3 A	-55 °C	125 °C	3	2.54 mm	0.1 in	Male Pins, Plug	Gold	UL94 V-0	R	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	120	3 Áin	0.076 Ám	All	Press-Fit	Through Hole
3M DIN-120RSCSR1TG30	3 A	-55 °C	125 °C	3	2.54 mm	0.1 in	Receptacle, Female Sockets	Gold	UL94 V-0	R	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	120	30 Áin	0.76 Ám	All	Solder	Through Hole, Right Angle
3M DIN-120RSC-SR1-HM	3 A	-55 °C	125 °C	3	2.54 mm	0.1 in	Receptacle, Female Sockets	Gold	UL94 V-0	R	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	120	3 Áin	0.076 Ám	All	Solder	Through Hole, Right Angle
