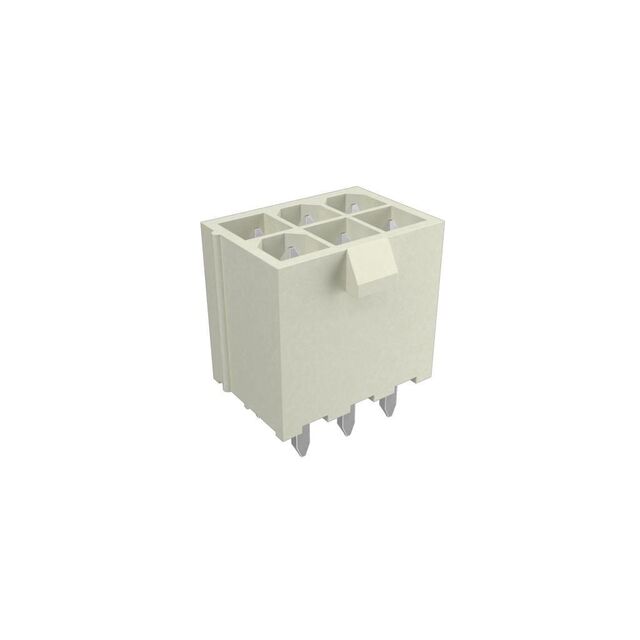

CONN HEADER VERT 6POS 4.2MM

Connectors, Interconnects

10131319-06211G0LF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 6POS 4.2MM

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10131319-06211G0LF

Connector Type	Header
Contact Finish - Mating	Tin
Contact Length - Post	0.138 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Glow Wire Compliant
Insulation Color	Natural
Insulation Height	0.504 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.165 in
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	600 V
Voltage Rating (Type)	DC

10131319 Series

Part	Number of Positions	Voltage Rating	Voltage Rating (Type)	Insulation Color	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Mounting Type	Contact Finish - Mating	Number of Rows	Number of Positions Loaded	Shrouding	Material Flammability Rating	Contact Shape	Connector Type	Current Rating	Termination	Row Spacing - Mating	Insulation Material	Pitch - Mating	Features	Contact Length - Post	Contact Finish Thickness - Mating	Style	Contact Type	Insulation Height	Contact Material	Contact Finish Thickness - Mating
Amphenol ICC (FCI) 10131319-04111G0LF	4	600 V	DC	Natural	-40 °C	105 °C	Locking Ramp	Through Hole	Gold	2	All	Shrouded - 4 Wall	UL94 V-0	Square	Header	Varies by Wire Gauge	Solder	0.165 in	Nylon 6/6 Polyamide (PA66)	0.165 in	Glow Wire Compliant	0.138 in	Flash	Board Cable/Wire	Male Pin	0.504 in	Copper Alloy
Amphenol ICC (FCI) 10131319-02121G0LF	2	600 V	DC	Black	-40 °C	105 °C	Locking Ramp	Through Hole	Gold	2	All	Shrouded - 4 Wall	UL94 V-0	Square	Header	Varies by Wire Gauge	Solder	0.165 in	Nylon 6/6 Polyamide (PA66)		Glow Wire Compliant	0.138 in	Flash	Board Cable/Wire	Male Pin	0.504 in	Copper Alloy
Amphenol ICC (FCI) 10131319-2421200LF	24 pos	600 V	DC	Natural	-40 °C	105 °C	Locking Ramp	Through Hole	Tin	2	All	Shrouded - 4 Wall	UL94 V-0	Square	Header	Varies by Wire Gauge	Solder	0.165 in	Liquid Crystal Polymer (LCP)	0.165 in		0.138 in		Board Cable/Wire	Male Pin	0.504 in	Copper Alloy	100 µin
Amphenol ICC (FCI) 10131319-08212GRLF	8	600 V	DC	Natural	-40 °C	105 °C	Locking Ramp	Through Hole	Tin	2	All	Shrouded - 4 Wall	UL94 V-0	Square	Header	Varies by Wire Gauge	Solder	0.165 in	Liquid Crystal Polymer (LCP)	0.165 in	Board Lock Glow Wire Compliant Pick and Place	0.138 in		Board Cable/Wire	Male Pin	0.504 in	Copper Alloy	100 µin
Amphenol ICC (FCI) 10131319-12211GPLF	12	600 V	DC	Natural	-40 °C	105 °C	Locking Ramp	Through Hole	Tin	2	All	Shrouded - 4 Wall	UL94 V-0	Square	Header	Varies by Wire Gauge	Solder	0.165 in	Nylon 6/6 Polyamide (PA66)	0.165 in	Board Lock Glow Wire Compliant	0.138 in		Board Cable/Wire	Male Pin	0.504 in	Copper Alloy	100 µin
Amphenol ICC (FCI) 10131319-12121G0LF	12	600 V	DC	Black	-40 °C	105 °C	Locking Ramp	Through Hole	Gold	2	All	Shrouded - 4 Wall	UL94 V-0	Square	Header	Varies by Wire Gauge	Solder	0.165 in	Nylon 6/6 Polyamide (PA66)	0.165 in	Glow Wire Compliant	0.138 in	Flash	Board Cable/Wire	Male Pin	0.504 in	Copper Alloy
Amphenol ICC (FCI) 10131319-1222100LF	12	600 V	DC	Black	-40 °C	105 °C	Locking Ramp	Through Hole	Tin	2	All	Shrouded - 4 Wall	UL94 V-0	Square	Header	Varies by Wire Gauge	Solder	0.165 in	Nylon 6/6 Polyamide (PA66)	0.165 in		0.138 in		Board Cable/Wire	Male Pin	0.504 in	Copper Alloy
Amphenol ICC (FCI) 10131319-06211G0LF	6	600 V	DC	Natural	-40 °C	105 °C	Locking Ramp	Through Hole	Tin	2	All	Shrouded - 4 Wall	UL94 V-0	Square	Header	Varies by Wire Gauge	Solder	0.165 in	Nylon 6/6 Polyamide (PA66)	0.165 in	Glow Wire Compliant	0.138 in		Board Cable/Wire	Male Pin	0.504 in	Copper Alloy
Amphenol ICC (FCI) 10131319-0222100LF	2	600 V	DC	Black	-40 °C	105 °C	Locking Ramp	Through Hole	Tin	2	All	Shrouded - 4 Wall	UL94 V-0	Square	Header	Varies by Wire Gauge	Solder	0.165 in	Nylon 6/6 Polyamide (PA66)			0.138 in		Board Cable/Wire	Male Pin	0.504 in	Copper Alloy
Amphenol ICC (FCI) 10131319-14111G0LF	14	600 V	DC	Natural	-40 °C	105 °C	Locking Ramp	Through Hole	Gold	2	All	Shrouded - 4 Wall	UL94 V-0	Square	Header	Varies by Wire Gauge	Solder	0.165 in	Nylon 6/6 Polyamide (PA66)	0.165 in	Glow Wire Compliant	0.138 in	Flash	Board Cable/Wire	Male Pin	0.504 in	Copper Alloy
