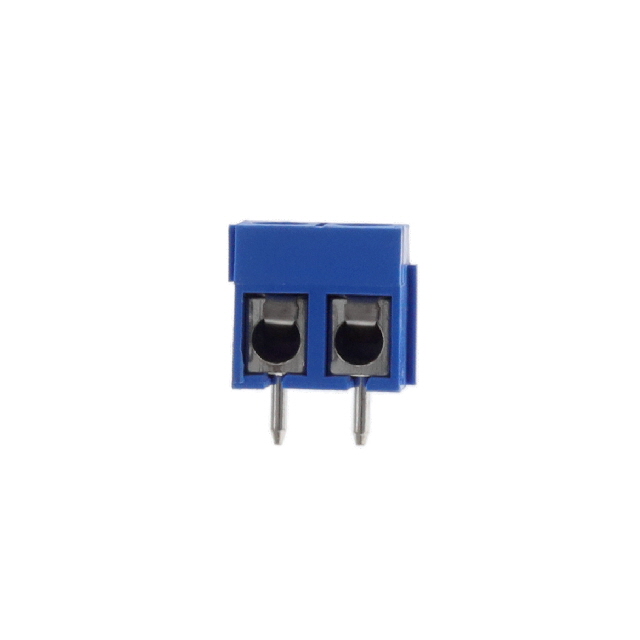

EBB-02-D-BL
ActiveAdam Tech
EUROBLOCK 2POS
Deep-Dive with AI
Search across all available documentation for this part.
EBB-02-D-BL
ActiveAdam Tech
EUROBLOCK 2POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EBB-02-D-BL |
|---|---|
| Clamp Material - Plating | Stainless, Steel |
| Color | Blue |
| Contact Material - Plating | Tin |
| Current | 16 A |
| Features | Interlocking (Side) |
| Housing Material | Thermoplastic |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Positions Per Level | 2 |
| Screw Material - Plating | Steel, Zinc Plated |
| Screw Thread | M2.6 |
| Torque - Screw | 0.3 Nm |
| Torque - Screw | 2.6 Lb-In |
| Voltage | 300 V |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 14 AWG |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.69 | |
| 10 | $ 0.33 | |||
| 25 | $ 0.26 | |||
| 50 | $ 0.22 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.16 | |||
| 900 | $ 0.14 | |||
| 1800 | $ 0.13 | |||
| 5400 | $ 0.12 | |||
Description
General part information
EBB Series
2 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
