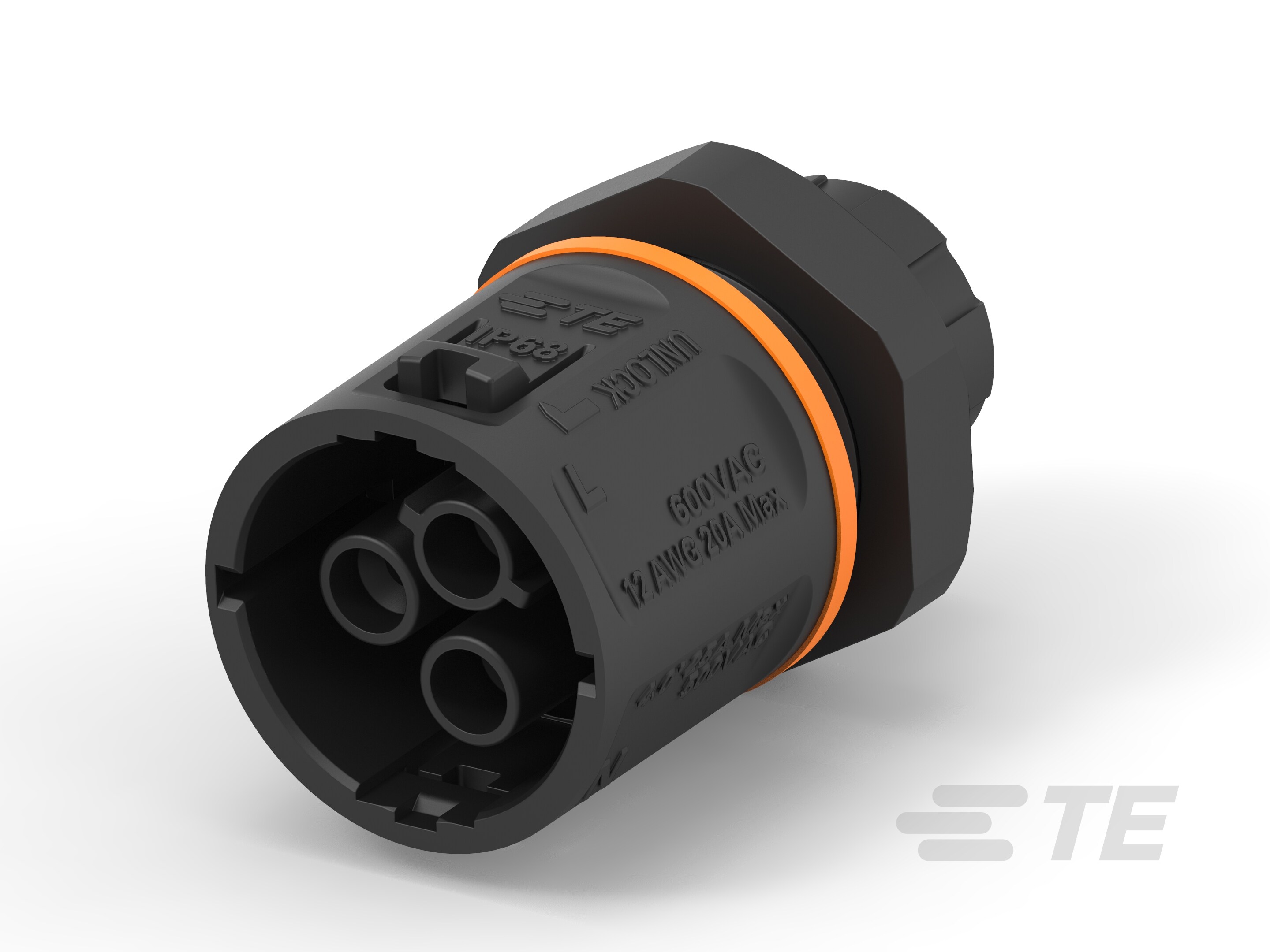

Specification	1-2359422-1

Connector Type	Receptacle Housing for Socket Contact
Contact Finish	Tin
Contact Material	Copper Alloy
Housing Color	Black
Housing Material	PBT, Polybutylene Terephthalate, Polycarbonate, PC
Mounting Type	Panel Mount
Number of Positions	3
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Style	Cable/Wire
Termination	Crimp
Wire Gauge (AWG) (Max)	16 AWG
Wire Gauge (AWG) (Min)	14 AWG

NECTOR T Series Series

Part	Connector Type	Cable Opening (Min)	Cable Opening (Max)	Voltage Rating	Orientation	Fastening Type	Color	Primary Material	Number of Positions	Position Types	Material Flammability Rating	Termination	Applications	Insert Material	Shielding	Operating Temperature (Min)	Operating Temperature (Max)	Features	Ingress Protection Description	Ingress Protection IP Rating	Contact Finish - Mating	Contact Material	Mounting Type	Current Rating Options	Backshell Material, Plating	Shell Material
TE Connectivity AMP Connectors 2379238-2	Male Pins Receptacle	0.413 in	0.591 in	600 V	B	Latch Lock Push-Pull	Black	Plastic	3	Power	UL94 HF-1 UL94 V-0	Screw	Lighting	PBT PC Polybutylene Terephthalate Polycarbonate	Unshielded	-40 °C	85 °C	Backshell	Dust Tight Waterproof	IP67 IP68	Tin	Copper Alloy	Free Hanging (In-Line)	20A 25A	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	Polybutylene Terephthalate (PBT) Polycarbonate (PC)
