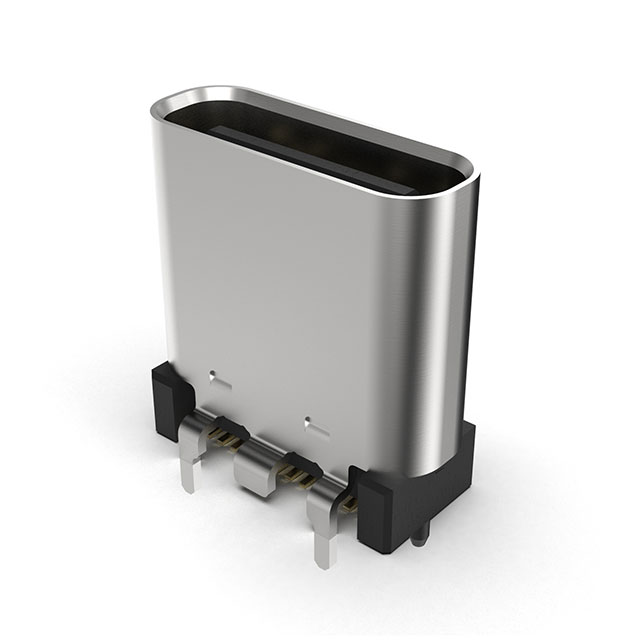

USB4115-03-C
ActiveGCT
CONN USB3.1 TYPE-C VERT SOCKET
Deep-Dive with AI
Search across all available documentation for this part.
USB4115-03-C
ActiveGCT
CONN USB3.1 TYPE-C VERT SOCKET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | USB4115-03-C |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 5 A |
| Features | Board Guide, Solder Retention Tab |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20000 |
| Mounting Feature | Vertical |
| Mounting Type | Surface Mount, Through Hole |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell/Shielding Material | Steel (SUS304) |
| Shielding | Shielded |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Termination | Solder |
| Voltage - Rated [custom] | 48 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.12 | |
| 10 | $ 0.94 | |||
| 25 | $ 0.90 | |||
| 50 | $ 0.89 | |||
| 100 | $ 0.85 | |||
| Tape & Reel (TR) | 450 | $ 0.69 | ||
| 900 | $ 0.67 | |||
| 1350 | $ 0.62 | |||
| 2250 | $ 0.58 | |||
| 3150 | $ 0.56 | |||
| 11250 | $ 0.51 | |||
Description
General part information
USB4115 Series
USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Through Hole
