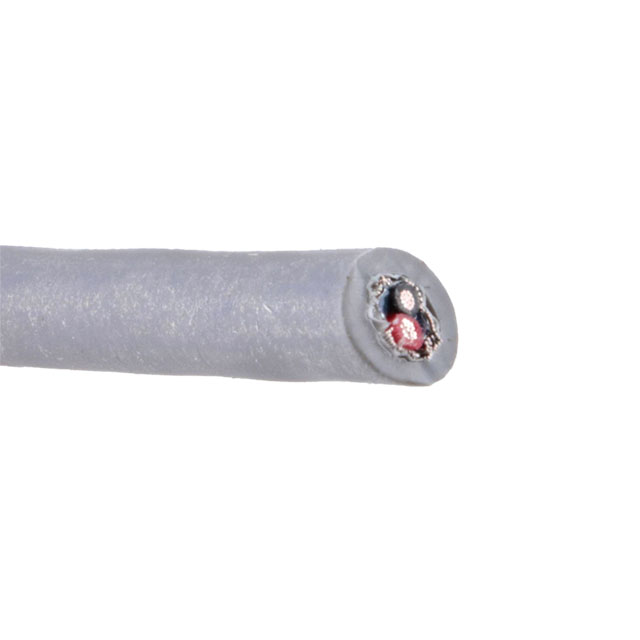

76302WS 008100
ActiveBelden Inc.
CABLE 2CON 22AWG CHROM SHLD 100'
Deep-Dive with AI
Search across all available documentation for this part.
76302WS 008100
ActiveBelden Inc.
CABLE 2CON 22AWG CHROM SHLD 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 76302WS 008100 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 34 AWG |
| Conductor Strand [custom] | 19 Strands |
| Features | Oil Resistant |
| Jacket (Insulation) Diameter [diameter] | 0.208 in |
| Jacket (Insulation) Diameter [diameter] | 5.28 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.04 in |
| Jacket (Insulation) Thickness | 1.016 mm |
| Jacket Color | Chrome |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 2 |
| Shield Coverage | 90 %, 100 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Spiral |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 165.71 | |
| 2 | $ 157.66 | |||
| 3 | $ 153.10 | |||
| 5 | $ 147.53 | |||
| 7 | $ 143.95 | |||
| 10 | $ 140.23 | |||
| 25 | $ 131.04 | |||
| 50 | $ 124.42 | |||
Description
General part information
76302WS Series
2 Conductor Multi-Conductor Cable Chrome 22 AWG Foil, Spiral 100.0' (30.5m)
