34402 010250

Active

Belden Inc.

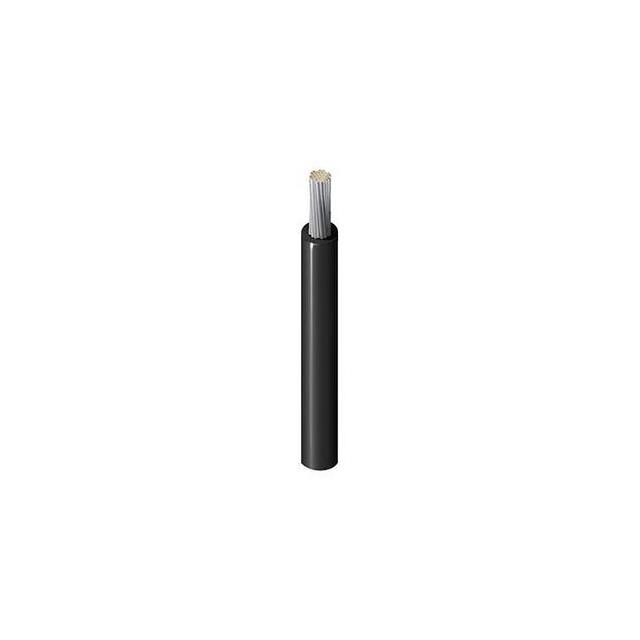

HOOK-UP STRND 2AWG 300V BLK

Search across all available documentation for this part.

Active

Belden Inc.

HOOK-UP STRND 2AWG 300V BLK

Technical Specifications

Parameters and characteristics for this part

Specification	34402 010250

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	24
Conductor Strand [custom]	163
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.454 "
Jacket (Insulation) Diameter [diameter]	11.53 mm
Jacket (Insulation) Material	Chlorosulfonated Polyethylene (CSPE)
Jacket (Insulation) Thickness	1.73 mm
Jacket (Insulation) Thickness	0.068 in
Jacket Color	Black
Length	3000 "
Length	76.2 m
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 3192
Voltage	300 V
Wire Gauge	2 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Wire Gauge	Cable Type	Ratings	Jacket Color	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Length [x]	Length [x]	Features	Length	Length
Belden Inc. 34402 010100	24	163	1.73 mm	0.068 in	Chlorosulfonated Polyethylene (CSPE)	2 AWG	Hook-Up	UL Style 3192	Black	Copper Tinned	0.454 "	11.53 mm	-30 ░C	105 ░C	300 V	30.5 m	100 ft	Oil Resistant
Belden Inc. 34402 010250	24	163	1.73 mm	0.068 in	Chlorosulfonated Polyethylene (CSPE)	2 AWG	Hook-Up	UL Style 3192	Black	Copper Tinned	0.454 "	11.53 mm	-30 ░C	105 ░C	300 V			Oil Resistant	3000 "	76.2 m
Belden Inc. 34402 010500	24	163	1.73 mm	0.068 in	Chlorosulfonated Polyethylene (CSPE)	2 AWG	Hook-Up	UL Style 3192	Black	Copper Tinned	0.454 "	11.53 mm	-30 ░C	105 ░C	300 V	152.4 m	500 '	Oil Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 15.27

General part information

2 AWG Hook-Up Wire 163/24 Black 300V 250.0' (76.2m)
