1000570022

Unknown

Molex - Temp Flex

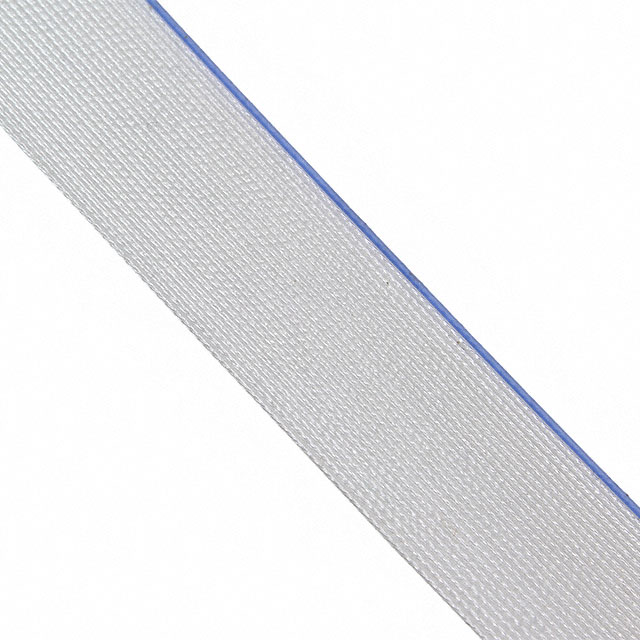

CBL RIBN 26COND 0.025 NATU 25'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1000570022

Unknown

Molex - Temp Flex

CBL RIBN 26COND 0.025 NATU 25'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 166.83
		5	$ 135.87
		10	$ 124.69
		25	$ 114.37

Description

General part information

100057 Series

Flat Ribbon Cable Natural 26 Conductors 0.025" (0.64mm) Flat Cable 25.0' (7.62m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1000570022	100057 Series

	-	-
Cable Type	Flat Cable	Flat Cable
Conductor Material	Copper, Silver Coated	Copper, Silver Coated, Copper, Bare
Conductor Strand	-	36 AWG
Conductor Strand	-	7 - 34 AWG
Conductor Strand [custom]	7	7
Conductor Strand [custom]	38 AWG	38 AWG
First Conductor Mark	Blue	Blue
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Natural	Blue, Red, Green, Gray, Natural
Length	15.24 m, 7.62 m, 304.8 mm	7.62 - 304.8 m
Length	50 ft, 25 ft, 1 ft	1 - 6000 ft
Length	-	3.05 m
Length	-	10 ft
Length	-	Enter Number of Feet in Order Quantity
Number of Conductors	26	6 - 100
Operating Temperature	-	150 - 200 °C
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-65 - -55 °C
Pitch [x]	0.64 mm	0.64 - 1.27 mm
Pitch [x]	0.025 in	0.025 - 0.05 in
Ratings	UL Style 20726	UL Style 20424, UL Style 20726
Ribbon Thickness	-	0.029 - 0.81 mm
Ribbon Thickness	-	0.032 in
Ribbon Thickness	-	0.74 mm
Ribbon Width	16.51 mm	1 - 76.2 mm
Ribbon Width	0.65 in	0.3 - 3 in
Ribbon Width	-	0.5 "
Ribbon Width	-	12.7 mm
Ribbon Width	-	0.8 - 2 in
Ribbon Width	-	20.32 - 50.8 mm
Ribbon Width	-	25.4 mm
Ribbon Width	-	0.7 - 1.25 in
Ribbon Width	-	17.78 - 31.75 mm
Shielding	Unshielded	Unshielded
Spool Size	-	30.48 m
Spool Size	-	100 ft
Voltage	150 V	150 - 300 V
Wire Gauge	30 AWG	26 - 32 AWG

100057 Series

CBL RIBN 10COND 0.05 BLUE 5'

Part	Conductor Material	Jacket (Insulation) Material	Ribbon Width [custom]	Ribbon Width [custom]	First Conductor Mark	Ratings	Number of Conductors	Cable Type	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Jacket Color	Shielding	Voltage	Ribbon Width	Ribbon Width	Length [x]	Length [x]	Spool Size	Spool Size	Length	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width	Conductor Strand	Conductor Strand [custom]
Molex - Temp Flex 1000570031	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP)	0.5 "	12.7 mm	Blue	UL Style 20424	10	Flat Cable	28 AWG	7	36 AWG	25 ft	7.62 m	-55 °C	200 °C	0.05 in	1.27 mm	Blue	Unshielded	300 V
Molex - Temp Flex 1000570030	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP)			Blue	UL Style 20424	6	Flat Cable	28 AWG	7	36 AWG	1 ft, 25 ft, 50 ft	7.62 m, 15.24 m, 304.8 mm	-55 °C	200 °C	0.05 in	1.27 mm	Blue	Unshielded	300 V	0.3 in	7.62 mm	3.05 m	10 ft
Molex - Temp Flex 1000570032	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP)			Blue	UL Style 20424	15	Flat Cable	28 AWG	7	36 AWG	1 ft, 25 ft, 50 ft	7.62 m, 15.24 m, 304.8 mm	-55 °C	200 °C	0.05 in	1.27 mm	Blue	Unshielded	300 V	0.75 "	19.05 mm
Molex - Temp Flex 1000570037	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP)			Blue	UL Style 20424	34	Flat Cable	28 AWG	7	36 AWG	25 ft	7.62 m	-55 °C	200 °C	0.05 in	1.27 mm	Blue	Unshielded	300 V			3.05 m	10 ft	30.48 m	100 ft	Enter Number of Feet in Order Quantity	1.7 in	43.18 mm
Molex - Temp Flex 1000570345	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP)				UL Style 20424	20	Flat Cable	28 AWG	7	36 AWG			-55 °C	200 °C	0.05 in	1.27 mm	Red	Unshielded	300 V		1 in								25.4 mm
Molex - Temp Flex 1000570034	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP)			Blue	UL Style 20424	20	Flat Cable	28 AWG	7	36 AWG	50 ft	15.24 m	-55 °C	200 °C	0.05 in	1.27 mm	Blue	Unshielded	300 V		1 in			30.48 m	100 ft	Enter Number of Feet in Order Quantity			25.4 mm
Molex - Temp Flex 1000570346	Copper, Bare	Fluorinated Ethylene-Propylene (FEP)					24	Flat Cable	28 AWG	7	36 AWG	6000 in	152.4 m	-65 ░C	200 °C	0.05 in	1.27 mm	Red	Unshielded	300 V
Molex - Temp Flex 1000570354	Copper, Bare	Fluorinated Ethylene-Propylene (FEP)					14	Flat Cable	26 AWG			6000 in	152.4 m	-65 ░C	200 °C	0.05 in	1.27 mm	Green	Unshielded	300 V											7 Strands, 34 AWG
Molex - Temp Flex 1000570332	Copper, Bare	Fluorinated Ethylene-Propylene (FEP)					14	Flat Cable	28 AWG	7	36 AWG	6000 in	152.4 m	-65 ░C	200 °C	0.05 in	1.27 mm	Gray	Unshielded	300 V
Molex - Temp Flex 1000570028	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP)			Blue	UL Style 20726	80	Flat Cable	30 AWG	7		50 ft	15.24 m	-55 °C	200 °C	0.025 in	0.64 mm	Natural	Unshielded	150 V					30.48 m	100 ft	Enter Number of Feet in Order Quantity	2 in	50.8 mm			38 AWG
