Molex - Temp Flex

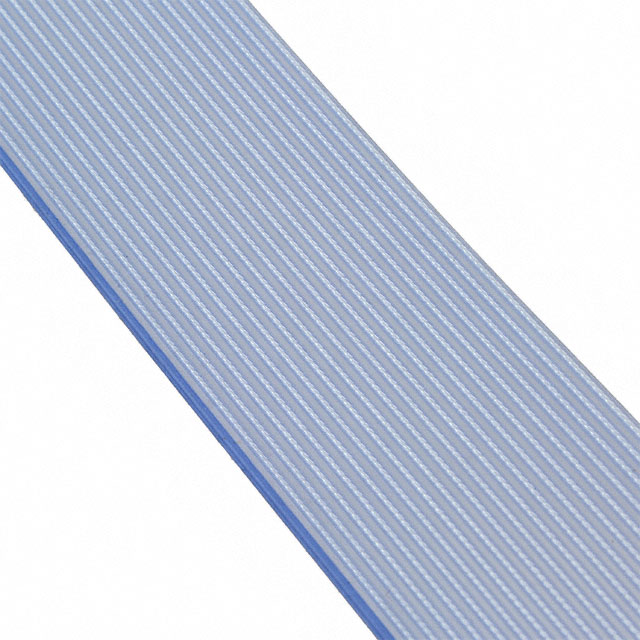

CBL RIBN 20COND 0.05 BLUE 50'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Temp-Flex High-Performance Flat-Ribbon Cable

1000570034

Unknown

Molex - Temp Flex

CBL RIBN 20COND 0.05 BLUE 50'

Deep-Dive with AI

DocumentsDatasheet Temp-Flex High-Performance Flat-Ribbon Cable

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1000570034	100057 Series

	-	-
Cable Type	Flat Cable	Flat Cable
Conductor Material	Copper, Silver Coated	Copper, Silver Coated, Copper, Bare
Conductor Strand	-	7 - 34 AWG
Conductor Strand	-	38 AWG
Conductor Strand [custom]	7	7
Conductor Strand [custom]	36 AWG	36 AWG
First Conductor Mark	Blue	Blue
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Blue	Blue, Red, Green, Gray, Natural
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length	15.24 m	7.62 - 304.8 m
Length	50 ft	1 - 6000 ft
Length	-	3.05 m
Length	-	10 ft
Number of Conductors	20	6 - 100
Operating Temperature	-	150 - 200 °C
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-65 - -55 °C
Pitch [x]	0.05 in	0.025 - 0.05 in
Pitch [x]	1.27 mm	0.64 - 1.27 mm
Ratings	UL Style 20424	UL Style 20424, UL Style 20726
Ribbon Thickness	-	0.029 - 0.81 mm
Ribbon Thickness	-	0.032 in
Ribbon Thickness	-	0.74 mm
Ribbon Width	1 in	1 - 76.2 mm
Ribbon Width	25.4 mm	25.4 mm
Ribbon Width	-	0.5 "
Ribbon Width	-	12.7 mm
Ribbon Width	-	0.3 - 3 in
Ribbon Width	-	0.8 - 2 in
Ribbon Width	-	20.32 - 50.8 mm
Ribbon Width	-	0.7 - 1.25 in
Ribbon Width	-	17.78 - 31.75 mm
Shielding	Unshielded	Unshielded
Spool Size	30.48 m	30.48 m
Spool Size	100 ft	100 ft
Voltage	300 V	150 - 300 V
Wire Gauge	28 AWG	26 - 32 AWG

100057 Series

CBL RIBN 10COND 0.05 BLUE 5'

Part	Conductor Material	Jacket (Insulation) Material	Ribbon Width [custom]	Ribbon Width [custom]	First Conductor Mark	Ratings	Number of Conductors	Cable Type	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Jacket Color	Shielding	Voltage	Ribbon Width	Ribbon Width	Length [x]	Length [x]	Spool Size	Spool Size	Length	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width	Conductor Strand	Conductor Strand [custom]
Molex - Temp Flex 1000570031	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP)	0.5 "	12.7 mm	Blue	UL Style 20424	10	Flat Cable	28 AWG	7	36 AWG	25 ft	7.62 m	-55 °C	200 °C	0.05 in	1.27 mm	Blue	Unshielded	300 V
Molex - Temp Flex 1000570030	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP)			Blue	UL Style 20424	6	Flat Cable	28 AWG	7	36 AWG	1 ft, 25 ft, 50 ft	7.62 m, 15.24 m, 304.8 mm	-55 °C	200 °C	0.05 in	1.27 mm	Blue	Unshielded	300 V	0.3 in	7.62 mm	3.05 m	10 ft
Molex - Temp Flex 1000570032	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP)			Blue	UL Style 20424	15	Flat Cable	28 AWG	7	36 AWG	1 ft, 25 ft, 50 ft	7.62 m, 15.24 m, 304.8 mm	-55 °C	200 °C	0.05 in	1.27 mm	Blue	Unshielded	300 V	0.75 "	19.05 mm
Molex - Temp Flex 1000570037	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP)			Blue	UL Style 20424	34	Flat Cable	28 AWG	7	36 AWG	25 ft	7.62 m	-55 °C	200 °C	0.05 in	1.27 mm	Blue	Unshielded	300 V			3.05 m	10 ft	30.48 m	100 ft	Enter Number of Feet in Order Quantity	1.7 in	43.18 mm
Molex - Temp Flex 1000570345	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP)				UL Style 20424	20	Flat Cable	28 AWG	7	36 AWG			-55 °C	200 °C	0.05 in	1.27 mm	Red	Unshielded	300 V		1 in								25.4 mm
Molex - Temp Flex 1000570034	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP)			Blue	UL Style 20424	20	Flat Cable	28 AWG	7	36 AWG	50 ft	15.24 m	-55 °C	200 °C	0.05 in	1.27 mm	Blue	Unshielded	300 V		1 in			30.48 m	100 ft	Enter Number of Feet in Order Quantity			25.4 mm
Molex - Temp Flex 1000570346	Copper, Bare	Fluorinated Ethylene-Propylene (FEP)					24	Flat Cable	28 AWG	7	36 AWG	6000 in	152.4 m	-65 ░C	200 °C	0.05 in	1.27 mm	Red	Unshielded	300 V
Molex - Temp Flex 1000570354	Copper, Bare	Fluorinated Ethylene-Propylene (FEP)					14	Flat Cable	26 AWG			6000 in	152.4 m	-65 ░C	200 °C	0.05 in	1.27 mm	Green	Unshielded	300 V											7 Strands, 34 AWG
Molex - Temp Flex 1000570332	Copper, Bare	Fluorinated Ethylene-Propylene (FEP)					14	Flat Cable	28 AWG	7	36 AWG	6000 in	152.4 m	-65 ░C	200 °C	0.05 in	1.27 mm	Gray	Unshielded	300 V
Molex - Temp Flex 1000570028	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP)			Blue	UL Style 20726	80	Flat Cable	30 AWG	7		50 ft	15.24 m	-55 °C	200 °C	0.025 in	0.64 mm	Natural	Unshielded	150 V					30.48 m	100 ft	Enter Number of Feet in Order Quantity	2 in	50.8 mm			38 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 11.44
		2	$ 10.37
		3	$ 9.78
		5	$ 9.10
		7	$ 8.67
		10	$ 8.24
		25	$ 7.23
		50	$ 6.55
		100	$ 5.94

Description

General part information

100057 Series

Flat Ribbon Cable Blue 20 Conductors 0.050" (1.27mm) Flat Cable 50.0' (15.24m)

Documents

Technical documentation and resources

Datasheet

Temp-Flex High-Performance Flat-Ribbon Cable
