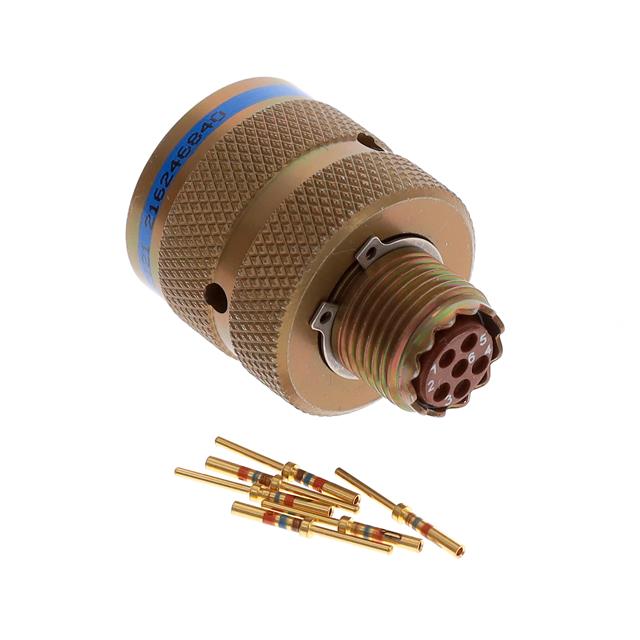

LJT06RE-9-6P

Active

Amphenol Aerospace Operations

CONN PLUG MALE 6POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN PLUG MALE 6POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	LJT06RE-9-6P

Applications	Aviation, Marine, Military
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Coupling Nut
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series I
Shell Finish	Cadmium over Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	9-6
Shielding	Shielded
Termination	Crimp

Part	Primary Material	Applications	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Termination	Features	Shell Material	Mounting Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Number of Positions	Contact Material	Qualification	Shielding	Connector Type	Shell Size - Insert	Contact Finish - Mating
Amphenol Aerospace Operations LJT06RE-9-6P	Metal	Aviation Marine Military	Cadmium over Nickel	1.27 µm	50 µin	Bayonet Lock	Crimp	Coupling Nut	Aluminum Alloy	Free Hanging (In-Line)	Environment Resistant	-65 ░C	347 °F	N	6	Copper Alloy	MIL-DTL-38999 Series I	Shielded	Male Pins Plug	9-6	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Plug, Male Pins Crimp
