4038-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
PRESS-FIT PCB PIN
Deep-Dive with AI
Search across all available documentation for this part.
4038-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
PRESS-FIT PCB PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4038-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter | 3.18 mm |
| Flange Diameter [diameter] | 0.125 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.2 in |
| Length - Above Flange [x] | 5.08 mm |
| Length - Below Flange [x] | 0.125 in |
| Length - Below Flange [x] | 3.18 mm |
| Length - Overall [x] | 11.94 mm |
| Length - Overall [x] | 0.47 in |
| Mounting Hole Diameter [diameter] | 2.06 mm |
| Mounting Hole Diameter [diameter] | 0.081 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 2.03 mm |
| Pin Size - Above Flange [diameter] | 0.08 in |
| Pin Size - Below Flange [diameter] | 1.91 mm |
| Pin Size - Below Flange [diameter] | 0.075 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Knurled, Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.66 | |
| 10 | $ 3.56 | |||
| 25 | $ 3.21 | |||
| 50 | $ 2.97 | |||
| 100 | $ 2.76 | |||
| 250 | $ 2.50 | |||
| 500 | $ 2.33 | |||
Description
General part information
4038-0 Series

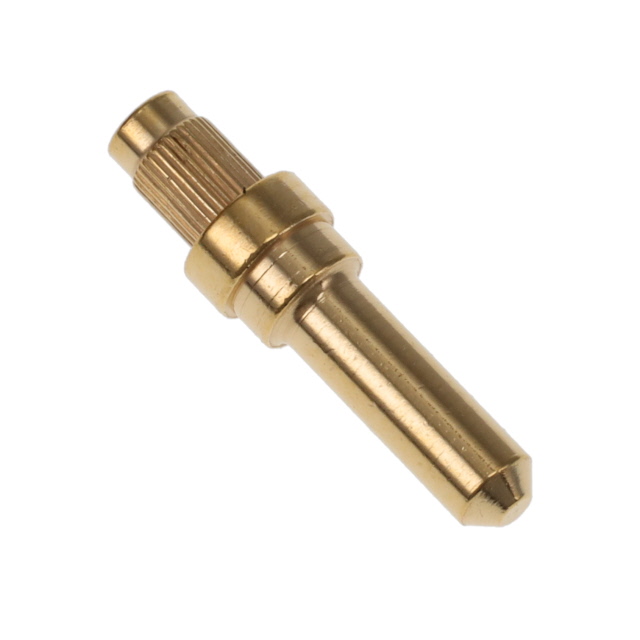

PC Pin Terminal Connector Through Hole Gold 0.080" (2.03mm) Dia
