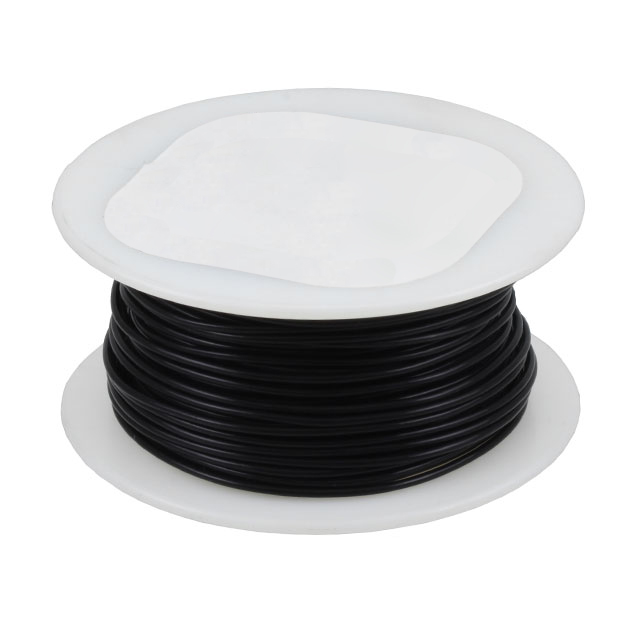

35618 010500 - Black Hook-up

35618 010500

Active
Belden Inc.

WIRE, HOOK UP/LEAD, PE, BLACK, 18 AWG, 0.81 MM², 500 FT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCabling Solutions for Industrial ApplicationsDatasheet+1
35618 010500 - Black Hook-up

35618 010500

Active
Belden Inc.

WIRE, HOOK UP/LEAD, PE, BLACK, 18 AWG, 0.81 MM², 500 FT

Deep-Dive with AI

DocumentsCabling Solutions for Industrial ApplicationsDatasheet+1

Technical Specifications

Parameters and characteristics for this part

Specification35618 010500
Cable TypeHook-Up
Conductor MaterialCopper, Tinned
Conductor Strand [custom]16
Conductor Strand [custom]30 AWG
Jacket (Insulation) Diameter [diameter]0.109 "
Jacket (Insulation) Diameter [diameter]2.77 mm
Jacket (Insulation) MaterialPolyethylene (XLPE), Irradiated
Jacket (Insulation) Thickness0.76 mm
Jacket (Insulation) Thickness0.762 mm
Jacket ColorBlack
Length15.24 m
Length [x]500 ', 50 ft, 100 ft
Length [x]152.4 m, 30.5 m
RatingsUL Style 3173
Voltage600 V
Wire Gauge18 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 116.73
1$ 59.31
5$ 48.52
5$ 95.51
10$ 37.74
10$ 74.28
25$ 32.35
25$ 63.67
50$ 30.19
50$ 59.43
100$ 55.18
100$ 28.04
Spool 500$ 0.66
1000$ 0.63
2500$ 0.59
5000$ 0.56
12500$ 0.53
NewarkSpool of 500 1$ 373.41
5$ 358.97
10$ 346.59

Description

General part information

35618 Series

The 35618 010500 is a Hook-up/Lead Wire with 18AWG tinned copper conductor and a black XLPE cross linked polyethylene insulation.
