395-062-525-107
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-062-525-107
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-062-525-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 62 |
| Number of Positions/Bay/Row [custom] | 62 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
395-062 Series
...
| Part | Termination | Number of Positions | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Color | Gender | Contact Material | Termination Rows | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Number of Positions/Bay/Row [custom] | Flange Feature | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Card Type | Contact Type | Mounting Type | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | 62 | Dual | -40 °C | 105 ░C | Black | Female | Copper Alloy | 2 | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 31 | 4-40 Threaded Insert Top Mount Opening | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Gold | Non Specified - Dual Edge | Cantilever | Through Hole | |||||
EDAC Inc. | Solder | 62 | Single | -40 °C | 105 ░C | Black | Female | Copper Alloy | 1 | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Gold | Non Specified - Single Edge | Cantilever | Through Hole | 62 | |||||
EDAC Inc. | Wire Wrap | 62 | Single | -40 °C | 105 ░C | Black | Female | Copper Alloy | 1 | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | M3 Threaded Insert Top Mount Opening | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Gold | Non Specified - Single Edge | Cantilever | Through Hole | 62 | |||||
EDAC Inc. | Solder | 62 | Single | -40 °C | 105 ░C | Black | Female | Copper Alloy | 1 | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 4-40 Threaded Insert Top Mount Opening | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Gold | Non Specified - Single Edge | Cantilever | Through Hole Right Angle | 62 | |||||
EDAC Inc. | Solder | 62 | Dual | -40 °C | 105 ░C | Black | Female | Copper Alloy | 2 | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 31 | Top Mount Opening Unthreaded | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Gold | Non Specified - Dual Edge | Cantilever | Through Hole | 0.156 in | 3.96 mm | |||
EDAC Inc. | Wire Wrap | 62 | Dual | -40 °C | 105 ░C | Black | Female | Copper Alloy | 2 | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 31 | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Gold | Non Specified - Dual Edge | Cantilever | Through Hole | 0.128 " | 3.25 mm | |||
EDAC Inc. | Solder | 62 | Single | -40 °C | 105 ░C | Black | Female | Copper Alloy | 1 | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Floating Bobbin Flush Mount | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Gold | Non Specified - Single Edge | Cantilever | Through Hole Right Angle | 62 | 0.116 in | 2.95 mm | |||
EDAC Inc. | Solder | 62 | Single | -40 °C | 105 ░C | Black | Female | Copper Alloy | 1 | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Gold | Non Specified - Single Edge | Cantilever | Through Hole | 62 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Wire Wrap | 62 | Single | -40 °C | 105 ░C | Black | Female | Copper Alloy | 1 | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Floating Bobbin Top Mount Opening | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Gold | Non Specified - Single Edge | Cantilever | Through Hole | 62 | 0.116 in | 2.95 mm | |||
EDAC Inc. | Wire Wrap | 62 | Dual | -40 °C | 105 ░C | Black | Female | Copper Alloy | 2 | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 31 | 4-40 Threaded Insert Top Mount Opening | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Gold | Non Specified - Dual Edge | Cantilever | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
395-062 Series

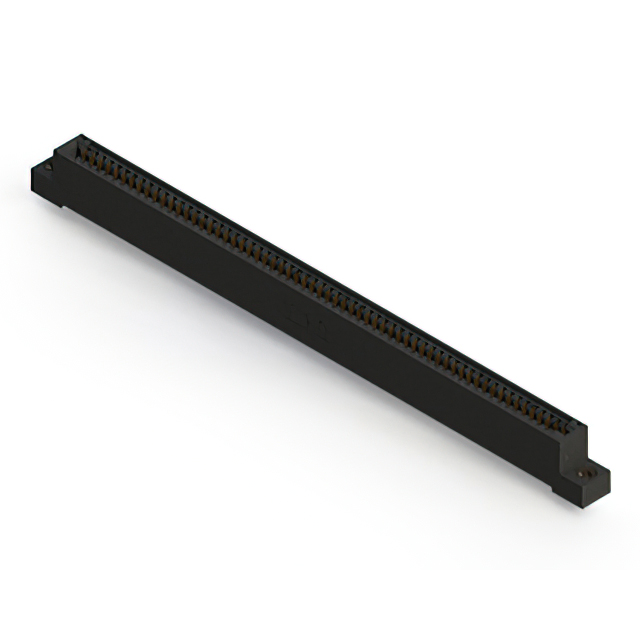

62 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
