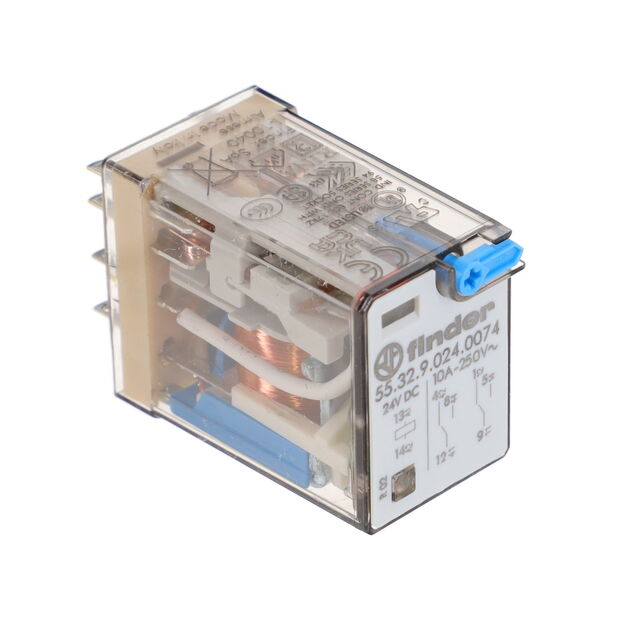

55.32.9.024.0074

Active

Finder Relays, Inc.

RELAY GEN PURPOSE DPDT 10A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

55.32.9.024.0074

Active

Finder Relays, Inc.

RELAY GEN PURPOSE DPDT 10A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	55.32.9.024.0074

Approval Agency	cURus, VDE, CE, UKCA, CSA, CCC, RINA, ENEC, EAC
Coil Current	40 mA
Coil Resistance	600 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	10 A
Load - Max Switching	4000 VA
Mounting Type	Socketable
Must Operate Voltage	19.2 VDC
Must Release Voltage	4.8 VDC
Operate Time	10 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	5 ms
Switching Voltage [Max]	400 VAC
Termination Style	Plug In

55.32.9 Series

Part	Relay Type	Contact Form	Coil Current	Contact Material	Must Operate Voltage	Switching Voltage [Max]	Operate Time	Release Time	Coil Type	Features	Load - Max Switching	Approval Agency	Coil Voltage	Mounting Type	Coil Resistance	Contact Rating (Current)	Termination Style	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]
Finder Relays, Inc. 55.32.9.024.0080	General Purpose	DPDT (2 Form C)	40 mA	Silver Nickel (AgNi)	19.2 VDC	400 VAC	10 ms	5 ms	Non Latching	Diode Lighted Indicator	4000 VA	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	24 VDC	Socketable	600 Ohms	10 A	Plug In	4.8 VDC	85 °C	-40 °C
Finder Relays, Inc. 55.32.9.012.0070	General Purpose	DPDT (2 Form C)	86 mA	Silver Nickel (AgNi)	9.6 VDC	400 VAC	10 ms	5 ms	Non Latching	Lighted Indicator Test Button	4000 VA	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	12 VDC	Socketable	140 Ohms	10 A	Plug In	2.4 VDC	85 °C	-40 °C
Finder Relays, Inc. 55.32.9.220.0000	General Purpose	DPDT (2 Form C)	4 mA	Silver Nickel (AgNi)	176 VDC	400 VAC	10 ms	5 ms	Non Latching		4000 VA	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	220 VDC	Socketable	54 kOhms	10 A	Plug In	44 VDC	85 °C	-40 °C
Finder Relays, Inc. 55.32.9.024.5000	General Purpose	DPDT (2 Form C)	40 mA	Gold (Au) Silver Nickel (AgNi)	19.2 VDC	400 VAC	10 ms	5 ms	Non Latching		4000 VA	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	24 VDC	Socketable	600 Ohms	10 A	Plug In	4.8 VDC	85 °C	-40 °C
Finder Relays, Inc. 55.32.9.012.0094	General Purpose	DPDT (2 Form C)	86 mA	Silver Nickel (AgNi)	9.6 VDC	400 VAC	10 ms	5 ms	Non Latching	Diode Lighted Indicator Mechanical Indicator Test Button	4000 VA	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	12 VDC	Socketable	140 Ohms	10 A	Plug In	2.4 VDC	85 °C	-40 °C
Finder Relays, Inc. 55.32.9.110.0040	General Purpose	DPDT (2 Form C)	8.8 mA	Silver Nickel (AgNi)	88 VDC	400 VAC	10 ms	5 ms	Non Latching		4000 VA	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	110 VDC	Socketable	12.5 kOhms	10 A	Plug In	22 VDC	85 °C	-40 °C
Finder Relays, Inc. 55.32.9.024.0074	General Purpose	DPDT (2 Form C)	40 mA	Silver Nickel (AgNi)	19.2 VDC	400 VAC	10 ms	5 ms	Non Latching		4000 VA	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	24 VDC	Socketable	600 Ohms	10 A	Plug In	4.8 VDC	85 °C	-40 °C
Finder Relays, Inc. 55.32.9.024.0090	General Purpose	DPDT (2 Form C)	40 mA	Silver Nickel (AgNi)	19.2 VDC	400 VAC	10 ms	5 ms	Non Latching	Diode Lighted Indicator Test Button	4000 VA	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	24 VDC	Socketable	600 Ohms	10 A	Plug In	4.8 VDC	85 °C	-40 °C
Finder Relays, Inc. 55.32.9.024.5040	General Purpose	DPDT (2 Form C)	40 mA	Gold (Au) Silver Nickel (AgNi)	19.2 VDC	400 VAC	10 ms	5 ms	Non Latching		4000 VA	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	24 VDC	Socketable	600 Ohms	10 A	Plug In	4.8 VDC	85 °C	-40 °C
Finder Relays, Inc. 55.32.9.024.5090	General Purpose	DPDT (2 Form C)	40 mA	Gold (Au) Silver Nickel (AgNi)	19.2 VDC	400 VAC	10 ms	5 ms	Non Latching	Diode Lighted Indicator Test Button	4000 VA	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	24 VDC	Socketable	600 Ohms	10 A	Plug In	4.8 VDC	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.36
		10	$ 11.88
		30	$ 11.28
		50	$ 10.69
		100	$ 10.10
		250	$ 9.21
		500	$ 8.61
		1000	$ 8.17

Description

General part information

55.32.9 Series

General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
