325-041-540-109

Active

EDAC Inc.

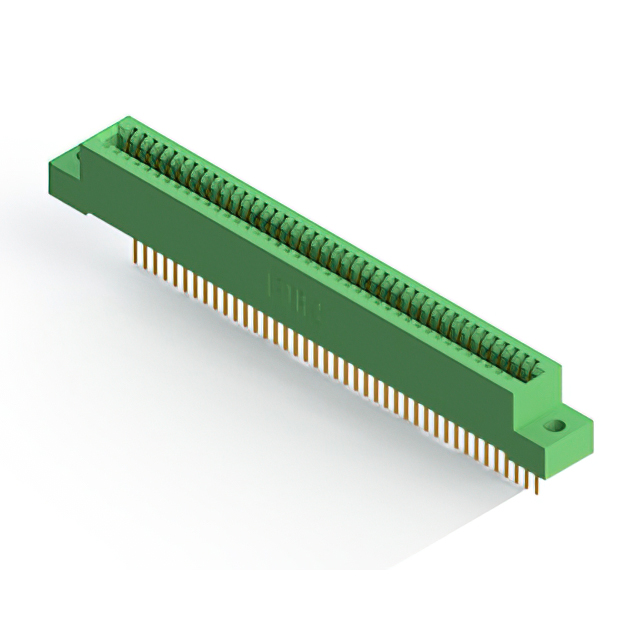

CONN EDGE SINGLE FML 41POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

325-041-540-109

Active

EDAC Inc.

CONN EDGE SINGLE FML 41POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325-041-540-109

Card Thickness	3.18 mm
Card Thickness	0.125 in
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	0.16 in
Flange Feature [diameter]	4.06 mm
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	41
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

325-041 Series

Part	Contact Material	Termination Rows	Termination	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Card Thickness	Card Thickness	Material - Insulation	Card Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Flange Feature	Contact Type	Gender	Color	Read Out	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 325-041-500-108	Copper Alloy	1	Solder Eyelet(s)	Through Hole	2.54 mm	0.1 in	41	3.18 mm	0.125 in	Diallyl Phthalate (DAP)	Non Specified - Single Edge	Gold	10 Áin	0.25 Ám	125 °C	-65 ░C	1	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Female	Green	Single
EDAC Inc. 325-041-540-109	Copper Alloy	1	Wire Wrap	Through Hole	2.54 mm	0.1 in	41	3.18 mm	0.125 in	Diallyl Phthalate (DAP)	Non Specified - Single Edge	Gold	10 Áin	0.25 Ám	125 °C	-65 ░C	1	Flush Mount Top Opening Unthreaded	Cantilever	Female	Green	Single	0.16 in	4.06 mm
EDAC Inc. 325-041-520-107	Copper Alloy	1	Solder	Through Hole	2.54 mm	0.1 in	41	3.18 mm	0.125 in	Diallyl Phthalate (DAP)	Non Specified - Single Edge	Gold	10 Áin	0.25 Ám	125 °C	-65 ░C	1	Flush Mount M3 Threaded Insert Top Opening	Cantilever	Female	Green	Single
EDAC Inc. 325-041-520-101	Copper Alloy	1	Solder	Through Hole	2.54 mm	0.1 in	41	3.18 mm	0.125 in	Diallyl Phthalate (DAP)	Non Specified - Single Edge	Gold	10 Áin	0.25 Ám	125 °C	-65 ░C	1		Cantilever	Female	Green	Single
EDAC Inc. 325-041-500-107	Copper Alloy	1	Solder Eyelet(s)	Through Hole	2.54 mm	0.1 in	41	3.18 mm	0.125 in	Diallyl Phthalate (DAP)	Non Specified - Single Edge	Gold	10 Áin	0.25 Ám	125 °C	-65 ░C	1	Flush Mount M3 Threaded Insert Top Opening	Cantilever	Female	Green	Single

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.98

Description

General part information

325-041 Series

41 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
