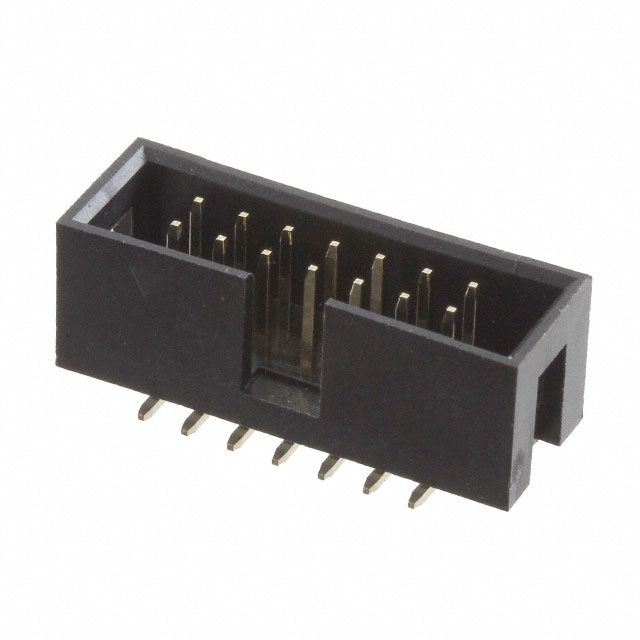

AWHW 14G-SMD

Active

Assmann WSW Components

CONN HEADER SMD 14POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AWHW 14G-SMD

Active

Assmann WSW Components

CONN HEADER SMD 14POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AWHW 14G-SMD

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	5.9 mm
Contact Length - Mating	0.232 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Pick and Place, Keying Slot
Insulation Color	Black
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Polyamide (PA9T), Nylon 9T, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

AWHW 14 Series

Part	Contact Length - Mating [x]	Contact Length - Mating [x]	Shrouding	Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Type	Contact Finish - Post	Termination	Contact Material	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Number of Positions	Insulation Height	Insulation Height	Insulation Color	Contact Shape	Number of Rows	Insulation Material	Fastening Type	Mounting Type	Current Rating (Amps)	Connector Type	Features	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating
Assmann WSW Components AWHW14G-0202-T-R	0.224 in	5.7 mm	Shrouded - 4 Wall	Board to Cable/Wire	-40 °C	105 ░C	Gold	Male Pin	Tin	Solder	Brass	Flash	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in	0.13 in	3.3 mm	14	9 mm	0.354 in	Gray	Square	2	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	Through Hole	3 A	Header	Keying Slot	All
Assmann WSW Components AWHW 14A-0202-T	0.224 in	5.7 mm	Shrouded - 4 Wall	Board to Cable/Wire	-40 °C	105 ░C	Gold	Male Pin	Tin	Solder	Brass	Flash	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in	0.124 "	3.15 mm	14	8.95 mm	0.352 in	Gray	Square	2	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	Through Hole Right Angle	3 A	Header	Keying Slot	All
Assmann WSW Components AWHW14G-0102-T-R	0.224 in	5.7 mm	Shrouded - 4 Wall	Board to Cable/Wire	-40 °C	105 ░C	Gold	Male Pin	Tin	Solder	Brass		0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in	0.13 in	3.3 mm	14	9 mm	0.354 in	Gray	Square	2	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	Through Hole	3 A	Header	Keying Slot	All	30 Áin	0.76 Ám
Assmann WSW Components AWHW 14G-SMD			Shrouded - 4 Wall	Board to Cable/Wire	-40 °C	105 ░C	Gold	Male Pin		Solder	Brass	Flash	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in			14	9 mm	0.354 in	Black	Square	2	Polyamide (PA9T) Nylon 9T Glass Filled	Push-Pull	Surface Mount	3 A	Header	Keying Slot Pick and Place	All			5.9 mm	0.232 in
Assmann WSW Components AWHW14A-0202-T-R	0.224 in	5.7 mm	Shrouded - 4 Wall	Board to Cable/Wire	-40 °C	105 ░C	Gold	Male Pin	Tin	Solder	Brass	Flash	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in	0.124 "	3.15 mm	14	8.94 mm	0.352 in	Gray	Square	2	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	Through Hole Right Angle	3 A	Header	Keying Slot	All
Assmann WSW Components AWHW14-G-SMD-R			Shrouded - 4 Wall	Board to Cable/Wire	-40 °C	105 ░C	Gold	Male Pin		Solder	Brass	Flash	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in			14	9 mm	0.354 in	Black	Square	2	Polyamide (PA9T) Nylon 9T Glass Filled	Push-Pull	Surface Mount	3 A	Header	Keying Slot Pick and Place	All			5.9 mm	0.232 in
Assmann WSW Components AWHW 14G-SMD-R			Shrouded - 4 Wall	Board to Cable/Wire	-40 °C	105 ░C	Gold	Male Pin		Solder	Brass	Flash	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in			14	9 mm	0.354 in	Black	Square	2	Polyamide (PA9T) Nylon 9T Glass Filled	Push-Pull	Surface Mount	3 A	Header	Keying Slot Pick and Place	All			5.9 mm	0.232 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.45
		22	$ 1.23
		110	$ 1.10
		506	$ 0.90
		1012	$ 0.80
		5016	$ 0.70
		10010	$ 0.67

Description

General part information

AWHW 14 Series

Connector Header Surface Mount 14 position 0.100" (2.54mm)

Documents

Technical documentation and resources
