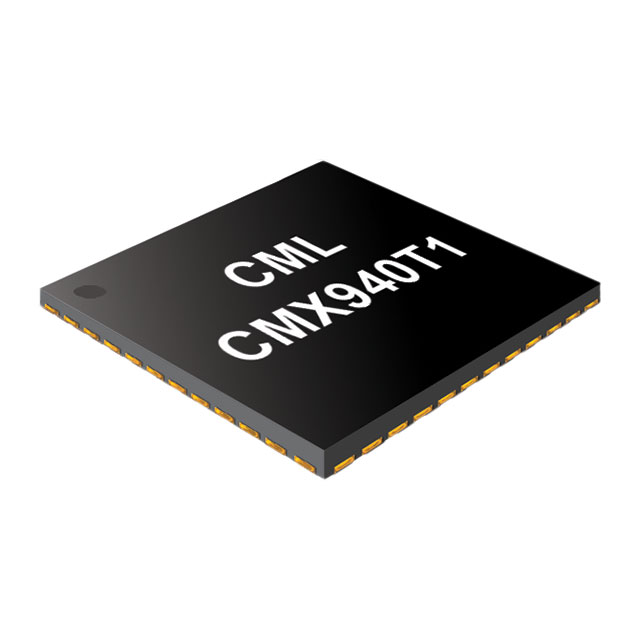

CMX940T1

Active

CML Micro

RF SYNTHESIZER

Search across all available documentation for this part.

Active

CML Micro

RF SYNTHESIZER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMX940T1	CMX940 Series

For Use With/Related Products	-	CMX940
Frequency [Max]	2.04 GHz	2.04 GHz
Frequency [Min]	49 MHz	49 MHz
Function	Fractional, Integer-N Synthesizer/ VCO	Fractional, Integer-N Synthesizer/ VCO
Mounting Type	Surface Mount	Surface Mount
Package / Case	48-WFLGA Exposed Pad	48-WFLGA Exposed Pad
RF Type	General Purpose	General Purpose
Secondary Attributes [Max]	3.6 V	3.6 V
Secondary Attributes [Min]	3 V	3 V
Supplied Contents	-	Board(s)
Supplier Device Package	48-LGA (7x7)	48-LGA (7x7)
Type	-	Frequency Synthesizer

EVAL KIT FOR CMX940

Part	Supplied Contents	For Use With/Related Products	Frequency [Max]	Frequency [Min]	Type	Supplier Device Package	RF Type	Function	Secondary Attributes [Min]	Secondary Attributes [Max]	Package / Case	Mounting Type
CML Micro EV9400	Board(s)	CMX940	2.04 GHz	49 MHz	Frequency Synthesizer
CML Micro CMX940T1-TR1K			2.04 GHz	49 MHz		48-LGA (7x7)	General Purpose	Fractional, Integer-N Synthesizer/ VCO	3 V	3.6 V	48-WFLGA Exposed Pad	Surface Mount
CML Micro CMX940T1			2.04 GHz	49 MHz		48-LGA (7x7)	General Purpose	Fractional, Integer-N Synthesizer/ VCO	3 V	3.6 V	48-WFLGA Exposed Pad	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF IC Fractional, Integer-N Synthesizer/ VCO General Purpose 49MHz ~ 2.04GHz 3V ~ 3.6V Supply 48-LGA (7x7)
