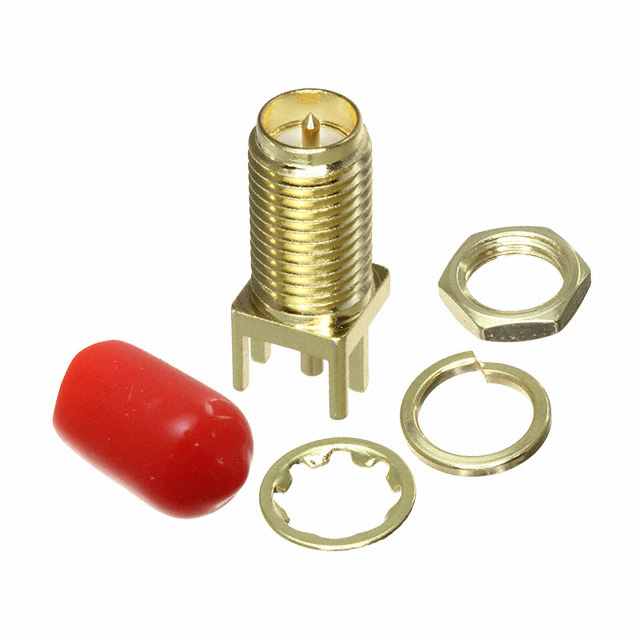

RPSMA-SM-062

Active

Digital Six Labs

CONN RP-SMA PLUG STR EDGE MNT

Search across all available documentation for this part.

Active

Digital Six Labs

CONN RP-SMA PLUG STR EDGE MNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RPSMA-SM-062	RPSMA Series

Connector Style	RP-SMA	RP-SMA
Connector Type	Plug, Female Socket	Plug, Female Socket, Male Pin, Jack
Contact Termination	Solder	Solder
Housing Color	Gold	Gold
Mounting Type	Board Edge, End Launch	Board Edge, End Launch, Through Hole, Right Angle
Number of Ports	1	1
Shield Termination	Solder	Solder

CONN RP-SMA PLUG STR EDGE MNT

Part	Number of Ports	Connector Type	Mounting Type	Housing Color	Contact Termination	Shield Termination	Connector Style
Digital Six Labs RPSMA-SM-062	1	Female Socket, Plug	Board Edge, End Launch	Gold	Solder	Solder	RP-SMA
Digital Six Labs RPSMA-RA	1	Jack, Male Pin	Through Hole, Right Angle	Gold	Solder	Solder	RP-SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	5	$ 2.95

General part information

RP-SMA Connector Plug, Female Socket Board Edge, End Launch Solder

Technical documentation and resources

No documents available
