EVSTGAP2SICSNC
ActiveDEMONSTRATION BOARD FOR STGAP2SICSNC ISOLATED 4 A SINGLE GATE DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
EVSTGAP2SICSNC
ActiveDEMONSTRATION BOARD FOR STGAP2SICSNC ISOLATED 4 A SINGLE GATE DRIVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVSTGAP2SICSNC |
|---|---|
| Embedded | False |
| Function | Gate Driver |
| Primary Attributes | Isolated, Rail-to-Rail Output |
| Supplied Contents | Board(s) |
| Type | Power Management |

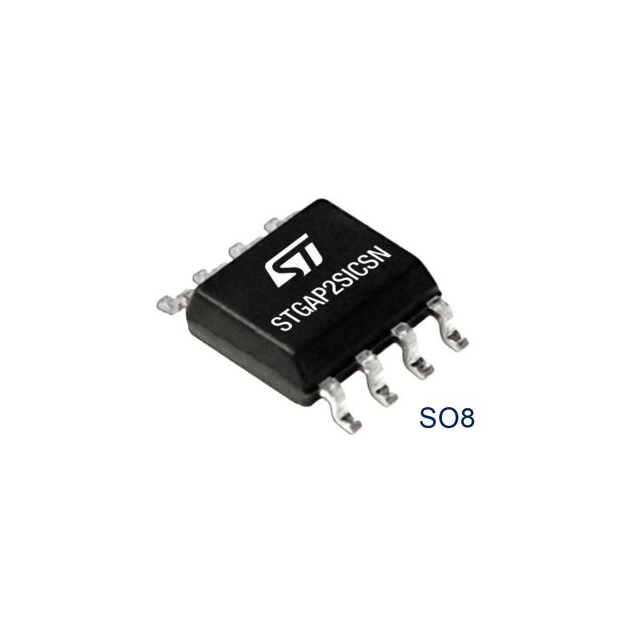

| Utilized IC / Part | STGAP2SICSNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EVSTGAP2SICSNC Series
The EVSTGAP2SICSNC is a half bridge evaluation board designed to evaluate the STGAP2SICSNC isolated single gate driver.
The gate driver is characterized by 4 A current capability and rail-to-rail outputs, making the device suitable also for high power inverter applications such as motor drivers in industrial applications equipped with SiC power switch.
The configuration featuring single output pin and Miller CLAMP function allow avoiding gate spikes during fast commutations in half-bridge topologies.
