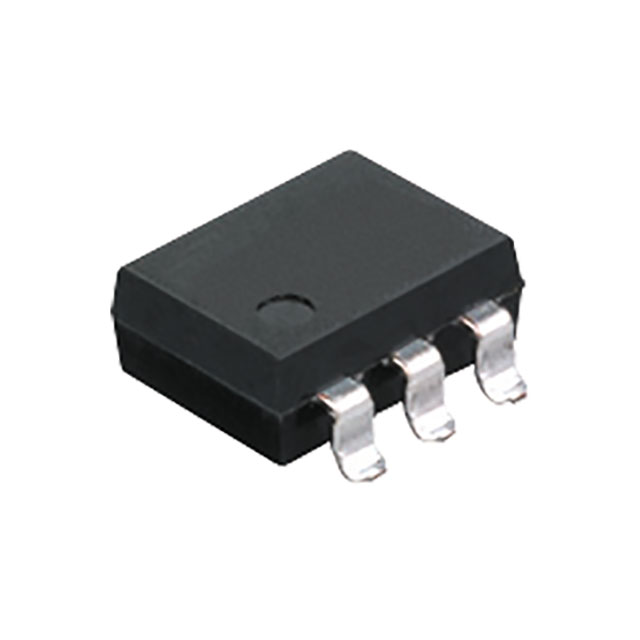

AQV209GAX

Active

Panasonic Electric Works

SSR RELAY DPST-NO 750MA 0-1200V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SSR RELAY DPST-NO 750MA 0-1200V

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Voltage - Load [Max]	Termination Style	On-State Resistance (Max) [Max]	Load Current	Mounting Type	Output Type	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case
Panasonic Electric Works AQV209GAX	DPST-NO (2 Form A)	1200 V	Gull Wing	2 Ohm	0.75 A	Surface Mount	AC DC	6-SMD Gull Wing	6-SMD	85 °C	-40 °C
Panasonic Electric Works AQV209G	DPST-NO (2 Form A)	1200 V	PC Pin	2 Ohm	0.75 A	Through Hole	AC DC	6-DIP	6-DIP	85 °C	-40 °C	0.3 in	7.62 mm
Panasonic Electric Works AQV209GAZ	DPST-NO (2 Form A)	1200 V	Gull Wing	2 Ohm	0.75 A	Surface Mount	AC DC	6-SMD Gull Wing	6-SMD	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 43.89

General part information

Solid State DPST-NO (2 Form A) 6-SMD, Gull Wing
