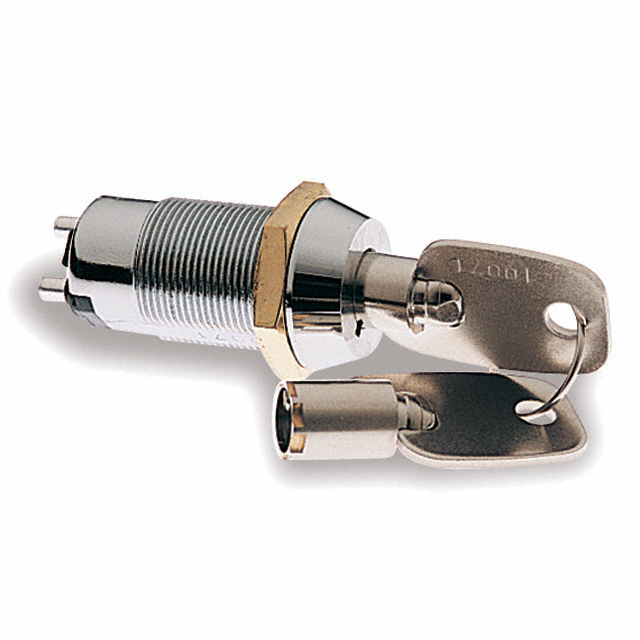

KO113C10001

Active

E-Switch

SWITCH KEYLOCK 2POS SPST 4A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH KEYLOCK 2POS SPST 4A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	KO113C10001

Actuator Type	Tubular Key
Angle of Throw	90 °
Circuit	SPST-NO
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Not Specified
Current Rating (Amps)	4 A
Depth Behind Flange [z]	38.5 mm
Key Removable Positions	1 only
Number of Positions	2
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Contact Timing	Number of Positions	Actuator Type	Termination Style	Circuit	Contact Material	Voltage Rating - AC	Switch Function	Current Rating (Amps)	Angle of Throw	Depth Behind Flange [z]	Key Removable Positions	Panel Cutout Dimensions [diameter]	Contact Finish
E-Switch KO113C10001	Not Specified	2	Tubular Key	Solder Lug	SPST-NO	Copper Alloy	125 V	Off-Mom	4 A	90 °	38.5 mm	1 only	19 mm	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	300	$ 7.83

General part information

Keylock Switch 2 Position SPST-NO 4A (AC) 125 VAC DC Panel Mount
