MIXA40WB1200TED

Active

IXYS

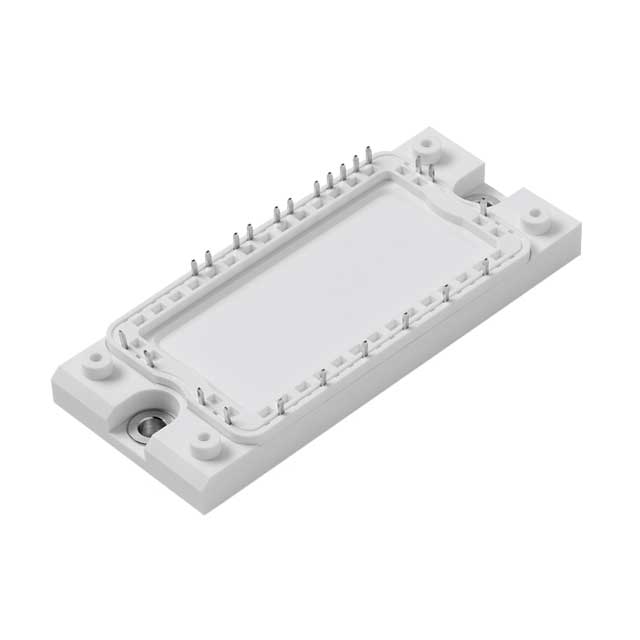

IGBT MODULE 1200V 60A 195W E2

Search across all available documentation for this part.

Active

IXYS

IGBT MODULE 1200V 60A 195W E2

Technical Specifications

Parameters and characteristics for this part

Specification	MIXA40WB1200TED

Configuration	Brake, Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	60 A
Current - Collector Cutoff (Max) [Max]	2.1 mA
IGBT Type	PT
Input	Three Phase Bridge Rectifier
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	E2
Power - Max [Max]	195 W
Supplier Device Package	E2
Vce(on) (Max) @ Vge, Ic [Max]	2.1 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Vce(on) (Max) @ Vge, Ic [Max]	Package / Case	NTC Thermistor	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Mounting Type	IGBT Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector Cutoff (Max) [Max]	Configuration	Supplier Device Package	Input	Current - Collector (Ic) (Max) [Max]
IXYS MIXA40WB1200TED	2.1 V	E2		1200 V	195 W	Chassis Mount	PT	-40 °C	125 ¯C	2.1 mA	Brake Three Phase Inverter	E2	Three Phase Bridge Rectifier	60 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT Module PT Three Phase Inverter with Brake 1200 V 60 A 195 W Chassis Mount E2
