CS42L92-CWZR
ActiveCirrus Logic Inc.
IC - HI-FI AUDIO CODEC
CS42L92-CWZR
ActiveCirrus Logic Inc.
IC - HI-FI AUDIO CODEC
Description
General part information
CS42L92 Series

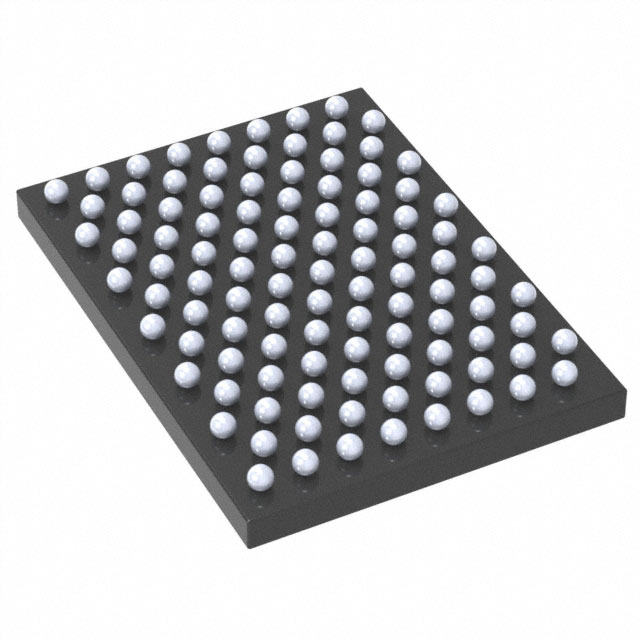

Audio Interface 32 b SLIMbus 104-WLCSP (4.78x3.47)
Technical Specifications
Parameters and characteristics for this part
| Specification | CS42L92-CWZR |
|---|---|
| Data Interface | SLIMbus |
| Mounting Type | Surface Mount |
| Number of ADCs | 4 count |
| Number of DACs | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | WLCSP, 104-UFBGA |
| Package Length | 4.78 mm |
| Package Name | 104-WLCSP |
| Package Width | 3.47 mm |
| Resolution (Bits) | 32 b |
| S/N Ratio (ADCs) (Typical) | 99 dB |
| S/N Ratio (DACs) (Typical) | 127 dB |
| Sigma Delta | Yes |
| Type | Audio |
| Voltage - Supply, Analog (Max) | 1.89 V |
| Voltage - Supply, Analog (Min) | 1.71 V |
| Voltage - Supply, Digital (Max) | 3.6 V |
| Voltage - Supply, Digital (Min) | 1.71 V |
