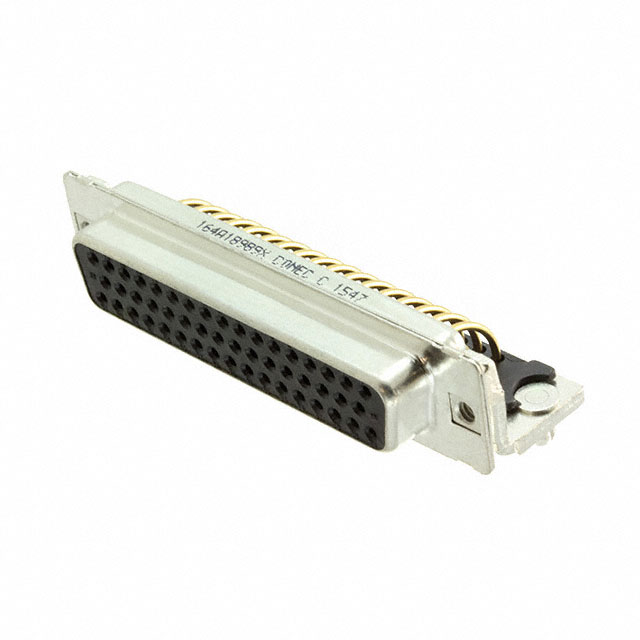

164A18989X

Active

Amphenol CONEC

CONN D-SUB RCPT 50POS R/A SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB RCPT 50POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	164A18989X

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock, Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5
Termination	Solder
Voltage Rating	125 VDC

Part	Contact Material	Connector Style	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Dielectric Material	Shell Size, Connector Layout	Material Flammability Rating	Color	Contact Finish	Contact Finish Thickness	Flange Feature	Termination	Current Rating (Amps)	Mounting Type	Number of Positions	Contact Type	Number of Rows	Backset Spacing	Backset Spacing	Features
Amphenol CONEC 164A18989X	Copper Alloy	D-Sub	125 VDC	-55 °C	125 °C	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	5	UL94 V-0	Black	Gold	Flash	Housing/Shell (4-40)	Solder	7.5 A	Board Edge Right Angle Through Hole	50	Signal	3	0.283 in	7.2 mm	Board Lock Mounting Brackets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position D-Sub Receptacle, Female Sockets Connector
