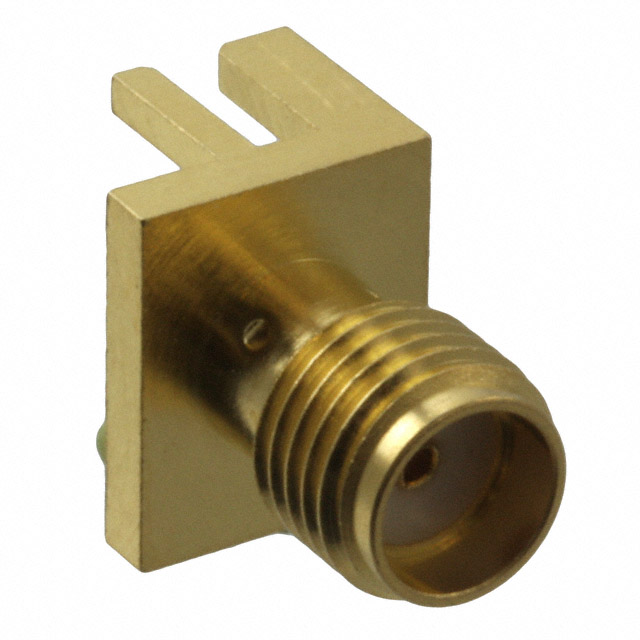

132357-11

Active

Amphenol RF

CONN SMA RCPT STR 50OHM EDGE MNT

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMA RCPT STR 50OHM EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	132357-11

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Tab
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Body Finish	Housing Color	Contact Termination	Mating Cycles	Dielectric Material	Mounting Type	Center Contact Plating	Connector Type	Frequency - Max [Max]	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Center Contact Material	Body Material	Shield Termination	Number of Ports
Amphenol RF 132357-11	Gold	Gold	Solder Tab	500	Polytetrafluoroethylene (PTFE)	Board Edge End Launch	Gold	Female Socket Receptacle	18 GHz	SMA	-65 ░C	165 °C	50 Ohms	Beryllium Copper	Brass	Solder	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Solder Tab

Technical documentation and resources

No documents available
