4-1393479-4
ActiveTE Connectivity AMP Connectors

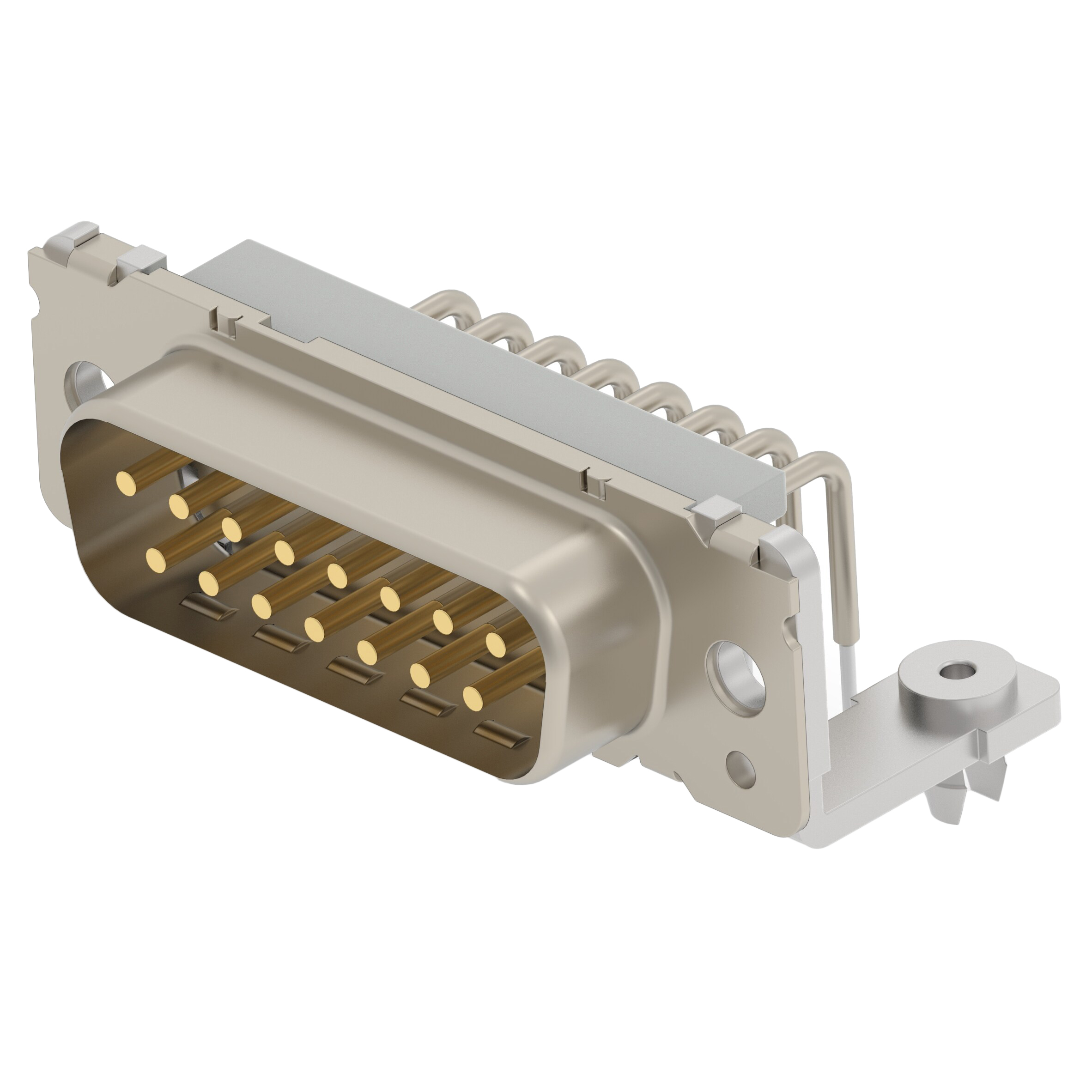

CONN D-SUB PLUG 15POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4-1393479-4
ActiveTE Connectivity AMP Connectors
CONN D-SUB PLUG 15POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4-1393479-4 | 1393479 Series |
|---|---|---|
| Connector Style | D-Sub | D-Sub |
| Connector Type | Plug, Male Pins | Plug, Male Pins, Receptacle, Female Sockets |
| Contact Finish | Gold | Gold |
| Contact Type | Signal | Signal |
| Features | Grounding Indents | Grounding Indents |
| Flange Feature | Housing/Shell (4-40) | Housing/Shell (4-40) |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 15 | 9 - 15 |
| Number of Rows | 2 | 2 |
| Shell Size, Connector Layout | 2 | 2 |
| Shell Size, Connector Layout | - | DB, B, DE, E |
| Shell Size, Connector Layout | - | 1 - 3 |
| Termination | Solder | Solder |
1393479 Series
CONN D-SUB PLUG R/A SLDR
| Part | Connector Type | Mounting Type | Features | Contact Finish | Termination | Connector Style | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature | Number of Rows | Number of Positions | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 4-1393479-0 | Male Pins, Plug | Through Hole, Right Angle | Grounding Indents | Gold | Solder | D-Sub | Signal | ||||||
TE Connectivity AMP Connectors 4-1393479-5 | Male Pins, Plug | Through Hole, Right Angle | Grounding Indents | Gold | Solder | D-Sub | Signal | B, DB | 3 | Housing/Shell (4-40) | 2 | ||
TE Connectivity AMP Connectors 4-1393479-3 | Male Pins, Plug | Through Hole, Right Angle | Grounding Indents | Gold | Solder | D-Sub | Signal | DE, E | 1 | Housing/Shell (4-40) | 2 | 9 | |
TE Connectivity AMP Connectors 5-1393479-9 | Receptacle, Female Sockets | Through Hole, Right Angle | Gold | Solder | D-Sub | Signal | DE, E | 1 | 2 | 9 | |||
TE Connectivity AMP Connectors 4-1393479-4 | Male Pins, Plug | Through Hole, Right Angle | Grounding Indents | Gold | Solder | D-Sub | Signal | Housing/Shell (4-40) | 2 | 15 | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 800 | $ 8.74 | |
Description
General part information
1393479 Series
15 Position D-Sub Plug, Male Pins Connector
