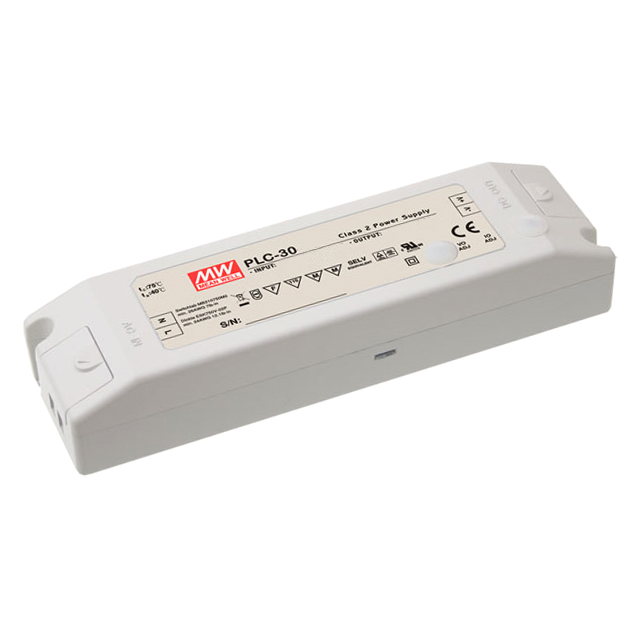

PLC-30-12
MEAN WELL USA Inc.
LED DRVR CC AC/DC 8.4-12V 2.5A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PLC-30-12
MEAN WELL USA Inc.
LED DRVR CC AC/DC 8.4-12V 2.5A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PLC-30-12 |
|---|---|
| Approval Agency | cURus, PSE, CB, CCC, ENEC, TUV, CE |
| Current - Output (Max) [Max] | 2.5 A |
| Efficiency | 82.5 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 160 mm |
| Size / Dimension [x] | 6.3 " |
| Size / Dimension [y] | 1.81 in |
| Size / Dimension [y] | 46 mm |
| Size / Dimension [z] | 30 mm |
| Size / Dimension [z] | 1.18 in |
| Termination Style | Terminal Block |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 264 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 12 V |
| Voltage - Output [Min] | 8.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 32.55 | |
| 10 | $ 29.21 | |||
| 25 | $ 27.98 | |||
Description
General part information
PLC-30 Series
2.5A 8.4 ~ 12V Constant Current LED Driver AC DC Converter Topology 1 Output
