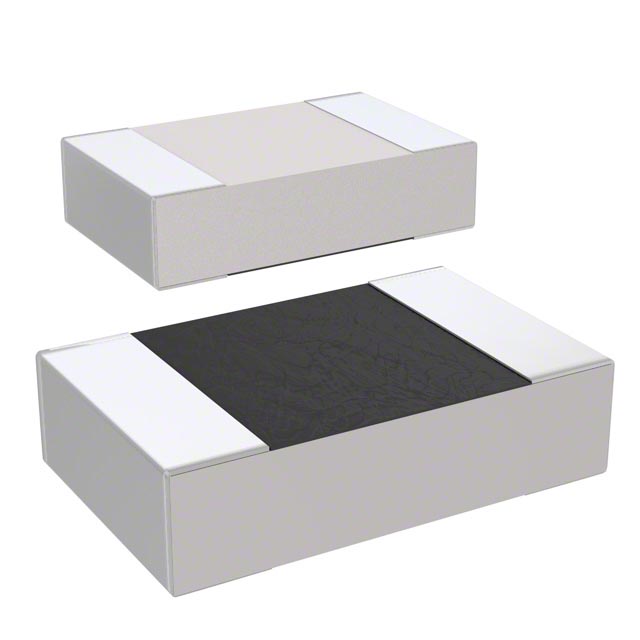

M55342E06B1B00R

Unknown

TT Electronics/IRC

RES SMD 1K OHM 0.1% 0.15W 0805

Search across all available documentation for this part.

Unknown

TT Electronics/IRC

RES SMD 1K OHM 0.1% 0.15W 0805

Technical Specifications

Parameters and characteristics commom to parts in this series

RES SMD 1K OHM 0.1% 0.15W 0805

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Composition	Power (Watts)	Temperature Coefficient	Resistance	Failure Rate	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Tolerance	Number of Terminations	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Power (Watts)
TT Electronics/IRC M55342E06B1B00R	1.27 mm	2.06 mm	0.081 in	0.05 "	Thin Film	150 mW	25 ppm/°C	1000 Ohms	R (0.01%)	0805	0.66 mm	0.026 in	0805	0.1 %	2	-55 °C	150 °C
TT Electronics/IRC M55342E12B4B70R	0.8 mm	1.6 mm	0.063 in	0.031 in	Thin Film	0.1 W	25 ppm/°C	4.7 kOhms	R (0.01%)				0603 (1608 Metric)	0.1 %	2	-55 °C	150 °C	0.6 mm	0.024 in	0.1 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 kOhms ±0.1% 0.15W Chip Resistor 0805 (2012 Metric) Military, Moisture Resistant Thin Film
