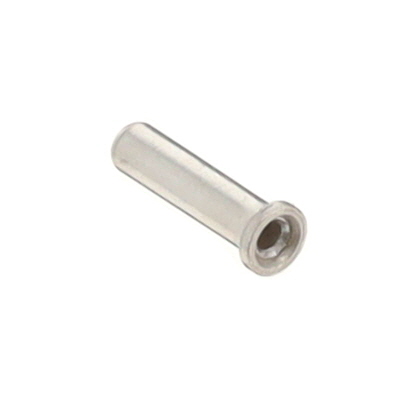

0552-2-15-01-11-02-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.020 SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0552-2-15-01-11-02-10-0

Accepts Pin Diameter [Max] [diameter]	0.51 mm
Accepts Pin Diameter [Max] [diameter]	0.02 "
Accepts Pin Diameter [Min] [diameter]	0.015 "
Accepts Pin Diameter [Min] [diameter]	0.38 mm
Contact Finish	Tin-Lead
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.4 mm
Flange Diameter [diameter]	0.055 in
Length - Overall [x]	0.17 in
Length - Overall [x]	4.32 mm
Mounting Hole Diameter [diameter]	0.04 in
Mounting Hole Diameter [diameter]	1.02 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.79 mm
Pin Hole Diameter [diameter]	0.031 in
Socket Depth	3.81 mm
Socket Depth	0.15 in
Tail Type	No Tail
Termination	Solder

0552-2 Series

Part	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Contact Finish	Socket Depth	Socket Depth	Flange Diameter [diameter]	Flange Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Contact Material	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]
Mill-Max Manufacturing Corp. 0552-2-15-80-11-27-10-0	No Tail	0.76 Ám	30 Áin	0.17 in	4.32 mm	Gold	0.136 in	3.45 mm	1.4 mm	0.055 in	-55 °C	125 °C	0.015 "	0.51 mm	0.02 "	0.38 mm	0.04 in	1.02 mm	Solder	Beryllium Copper	0.79 mm	0.031 in
Mill-Max Manufacturing Corp. 0552-2-15-01-21-27-10-0	No Tail	0.76 Ám	30 Áin	0.17 in	4.32 mm	Gold	0.15 in	3.81 mm	1.4 mm	0.055 in	-55 °C	125 °C					0.04 in	1.02 mm	Solder	Beryllium Copper	0.79 mm	0.031 in	0.38 mm	0.022 in	0.015 "	0.56 mm
Mill-Max Manufacturing Corp. 0552-2-15-15-11-27-10-0	No Tail	0.76 Ám	30 Áin	0.17 in	4.32 mm	Gold	0.15 in	3.81 mm	1.4 mm	0.055 in	-55 °C	125 °C	0.015 "	0.51 mm	0.02 "	0.38 mm	0.04 in	1.02 mm	Solder	Beryllium Copper	0.79 mm	0.031 in
Mill-Max Manufacturing Corp. 0552-2-15-01-21-14-10-0	No Tail	0.25 Ám	10 Áin	0.17 in	4.32 mm	Gold	0.15 in	3.81 mm	1.4 mm	0.055 in	-55 °C	125 °C					0.04 in	1.02 mm	Solder	Beryllium Copper	0.79 mm	0.031 in	0.38 mm	0.022 in	0.015 "	0.56 mm
Mill-Max Manufacturing Corp. 0552-2-15-15-21-14-10-0	No Tail	0.25 Ám	10 Áin	0.17 in	4.32 mm	Gold	0.136 in	3.45 mm	1.4 mm	0.055 in	-55 °C	125 °C	0.015 "	0.51 mm	0.02 "	0.38 mm	0.04 in	1.02 mm	Solder	Beryllium Copper	0.79 mm	0.031 in
Mill-Max Manufacturing Corp. 0552-2-15-01-11-02-10-0	No Tail	2.54 µm	100 µin	0.17 in	4.32 mm	Tin-Lead	0.15 in	3.81 mm	1.4 mm	0.055 in	-55 °C	125 °C	0.015 "	0.51 mm	0.02 "	0.38 mm	0.04 in	1.02 mm	Solder	Beryllium Copper	0.79 mm	0.031 in
Mill-Max Manufacturing Corp. 0552-2-15-15-21-27-10-0	No Tail	0.76 Ám	30 Áin	0.17 in	4.32 mm	Gold	0.15 in	3.81 mm	1.4 mm	0.055 in	-55 °C	125 °C					0.04 in	1.02 mm	Solder	Beryllium Copper	0.79 mm	0.031 in	0.38 mm	0.022 in	0.015 "	0.56 mm
Mill-Max Manufacturing Corp. 0552-2-15-80-21-14-10-0	No Tail	0.25 Ám	10 Áin	0.17 in	4.32 mm	Gold	0.136 in	3.45 mm	1.4 mm	0.055 in	-55 °C	125 °C	0.015 "	0.51 mm	0.02 "	0.38 mm	0.04 in	1.02 mm	Solder	Beryllium Copper	0.79 mm	0.031 in
Mill-Max Manufacturing Corp. 0552-2-15-15-11-14-10-0	No Tail	0.25 Ám	10 Áin	0.17 in	4.32 mm	Gold	0.136 in	3.45 mm	1.4 mm	0.055 in	-55 °C	125 °C	0.015 "	0.51 mm	0.02 "	0.38 mm	0.04 in	1.02 mm	Solder	Beryllium Copper	0.79 mm	0.031 in
Mill-Max Manufacturing Corp. 0552-2-15-80-11-84-10-0	No Tail	2.54 µm	100 µin	0.17 in	4.32 mm	Tin	0.136 in	3.45 mm	1.4 mm	0.055 in	-55 °C	125 °C	0.015 "	0.51 mm	0.02 "	0.38 mm	0.04 in	1.02 mm	Solder	Beryllium Copper	0.79 mm	0.031 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.03
		10	$ 0.87
		100	$ 0.78
		1000	$ 0.57
		5000	$ 0.50
		10000	$ 0.47

Description

General part information

0552-2 Series

Pin Receptacle Connector 0.015" ~ 0.020" (0.38mm ~ 0.51mm) No Tail Solder
