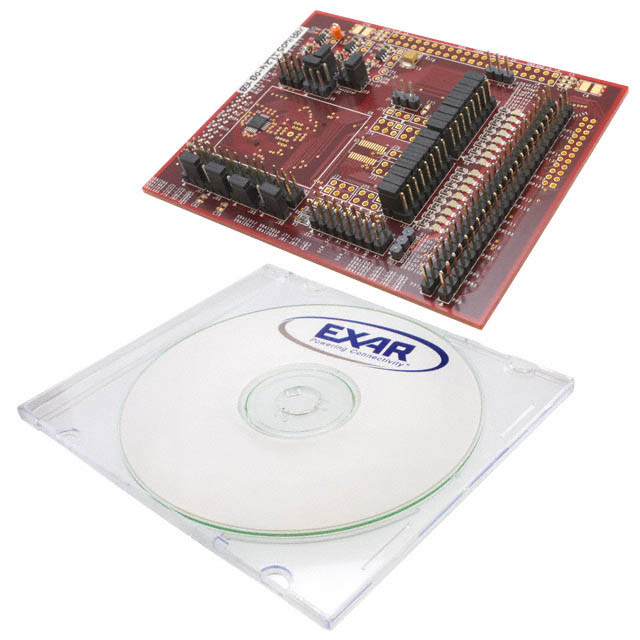

XRA1405IL24-0B-EB - XRA1405IL24-0B-EB

XRA1405IL24-0B-EB

Active

MaxLinear, Inc.

GPIO EXPANDER EVAL BOARD

Deep-Dive with AI

Search across all available documentation for this part.

XRA1405IL24-0B-EB - XRA1405IL24-0B-EB

XRA1405IL24-0B-EB

Active

MaxLinear, Inc.

GPIO EXPANDER EVAL BOARD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 30.93

Description

General part information

XRA1405 Series

XRA1405IL24 - GPIO Expander Interface Evaluation Board

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XRA1405IL24-0B-EB	XRA1405 Series

Clock Frequency	-	26 MHz
Contents	Board(s)	Board(s)
Embedded	False	False
Function	GPIO Expander	GPIO Expander
Interface	-	SPI
Interrupt Output	-	True
Mounting Type	-	Surface Mount
Number of I/O	-	16
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	-	Open Drain
Package / Case	-	24-VFQFN Exposed Pad
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	24-QFN (4x4)
Type	Interface	Interface
Utilized IC / Part	XRA1405IL24	XRA1405IL24, XRA1405IG24
Voltage - Supply	-	1.65 V
Voltage - Supply	-	3.6 V

XRA1405 Series

IC XPNDR 26MHZ SPI 24QFN

Part	Interface	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Interrupt Output	Output Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Clock Frequency	Mounting Type	Number of I/O	Function	Contents	Supplied Contents	Utilized IC / Part	Embedded	Type
MaxLinear, Inc. XRA1405IL24TR-F	SPI	24-QFN (4x4)	1.65 V	3.6 V		Open Drain	24-VFQFN Exposed Pad	85 °C	-40 °C	26 MHz	Surface Mount	16
MaxLinear, Inc. XRA1405IL24-0B-EB													GPIO Expander	Board(s)	Board(s)	XRA1405IL24		Interface
MaxLinear, Inc. XRA1405IG24-0B-EB													GPIO Expander	Board(s)	Board(s)	XRA1405IG24		Interface
