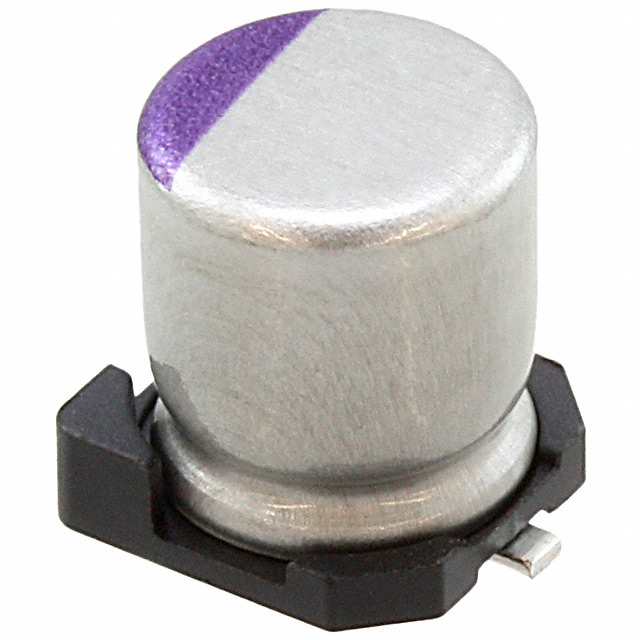

6SVPE150M - OS-CON, SVPE,Sp-Cap Ue

6SVPE150M

Active
Panasonic Industrial Automation Sales

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 150 ΜF, 6.3 V, RADIAL CAN - SMD, 0.012 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice ENOne Page Summary EN+1
6SVPE150M - OS-CON, SVPE,Sp-Cap Ue

6SVPE150M

Active
Panasonic Industrial Automation Sales

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 150 ΜF, 6.3 V, RADIAL CAN - SMD, 0.012 OHM

Deep-Dive with AI

DocumentsProduct Change Notice ENOne Page Summary EN+1

Technical Specifications

Parameters and characteristics for this part

Specification6SVPE150M
ApplicationsGeneral Purpose
Capacitance150 µF
ESR (Equivalent Series Resistance)12 mOhms
Height - Seated (Max) [Max]0.236 in
Height - Seated (Max) [Max]6 mm
Lifetime @ Temp.2000 Hrs
Mounting TypeSurface Mount
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Package / CaseRadial, Can - SMD
Ripple Current @ High Frequency3.52 A
Ripple Current @ Low Frequency176 mA
Size / Dimension [diameter]5 mm
Size / Dimension [diameter]0.197 "
Surface Mount Land Size [x]0.209 in
Surface Mount Land Size [x]5.3 mm
Surface Mount Land Size [y]5.3 mm
Surface Mount Land Size [y]0.209 in
Tolerance20 %
TypePolymer
Voltage - Rated6.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.93
10$ 0.63
50$ 0.53
100$ 0.43
500$ 0.37
Digi-Reel® 1$ 0.93
10$ 0.63
50$ 0.53
100$ 0.43
500$ 0.37
Tape & Reel (TR) 1500$ 0.28
NewarkEach (Supplied on Cut Tape) 1$ 0.80
10$ 0.42
25$ 0.40
50$ 0.39
100$ 0.38
250$ 0.37

Description

General part information

6SVPE Series

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 150 ΜF, 6.3 V, RADIAL CAN - SMD, 0.012 OHM
