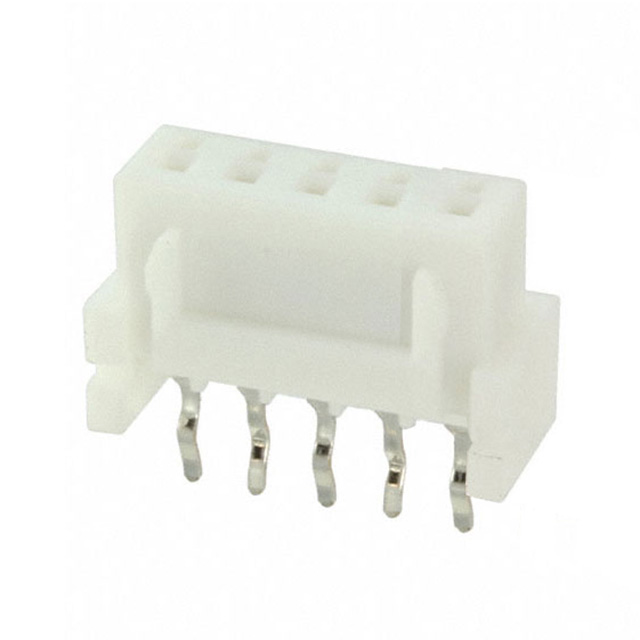

05JQ-BT

Active

JST Sales America Inc.

CONN RCPT 5POS 0.098 TIN PCB

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT 5POS 0.098 TIN PCB

Technical Specifications

Parameters and characteristics for this part

Specification	05JQ-BT

Connector Type	Receptacle
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	9.5 mm
Insulation Height	0.374 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Mated Stacking Heights	11.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Termination	Solder, Press-Fit
Voltage Rating	250 VDC

Part	Contact Shape	Insulation Height	Insulation Height	Contact Type	Mounting Type	Termination	Current Rating (Amps)	Contact Material	Insulation Material	Fastening Type	Number of Rows	Insulation Color	Number of Positions Loaded	Connector Type	Voltage Rating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mated Stacking Heights
JST Sales America Inc. 05JQ-ST	Square	6 mm	0.236 in	Female Socket	Through Hole Right Angle	Press-Fit Solder	3 A	Phosphor Bronze	Polyamide (PA66) Nylon 6/6	Friction Lock	1	Natural	All	Receptacle	250 VDC	2.5 mm	0.098 in	UL94 V-0	-25 °C	85 °C
JST Sales America Inc. 05JQ-BT	Square	9.5 mm	0.374 in	Female Socket	Through Hole	Press-Fit Solder	3 A	Phosphor Bronze	Polyamide (PA66) Nylon 6/6	Friction Lock	1	Natural	All	Receptacle	250 VDC	2.5 mm	0.098 in	UL94 V-0	-25 °C	85 °C	11.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Receptacle Connector 0.098" (2.50mm) Through Hole Tin
