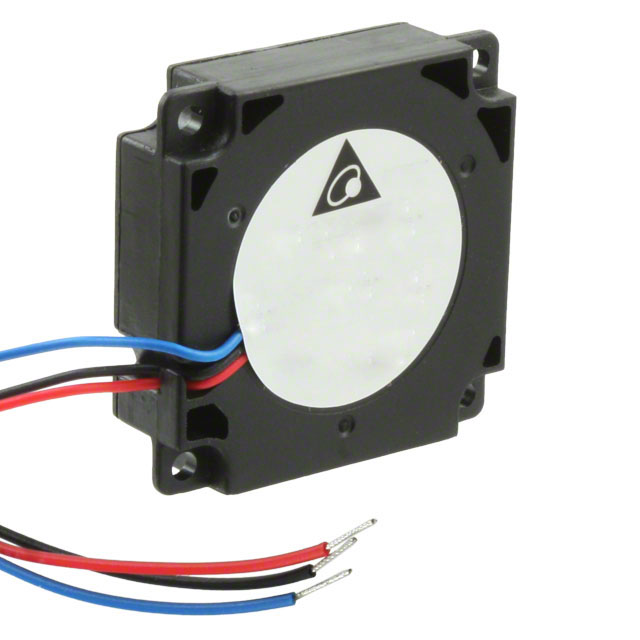

BFB03512HHA-AF00

Obsolete

Delta Electronics

FAN BLOWER 35X10MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN BLOWER 35X10MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	BFB03512HHA-AF00

Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Blower
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	30000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	31 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
RPM	8500 RPM
Size / Dimension [x]	35 mm
Size / Dimension [z]	35 mm
Static Pressure	110.3 Pa
Static Pressure	0.443 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Weight	11.34 g
Weight	0.025 lb
Width [y]	10 mm

Part	Termination	Features	Material - Frame	Noise	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Weight	Weight	Fan Type	Size / Dimension [z]	Size / Dimension [x]	Bearing Type	RPM	Width [y]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Static Pressure	Static Pressure	Voltage - Rated
Delta Electronics BFB03512HHA-AF00	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	Plastic	31 dB(A)	30000 Hrs	13.2 VDC	7 V	11.34 g	0.025 lb	Blower	35 mm	35 mm	Ball	8500 RPM	10 mm	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	Plastic	110.3 Pa	0.443 in H2O	12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Blower 12VDC Square - 35mm L x 35mm H Ball 2.1 CFM (0.059m³/min) 3 Wire Leads
