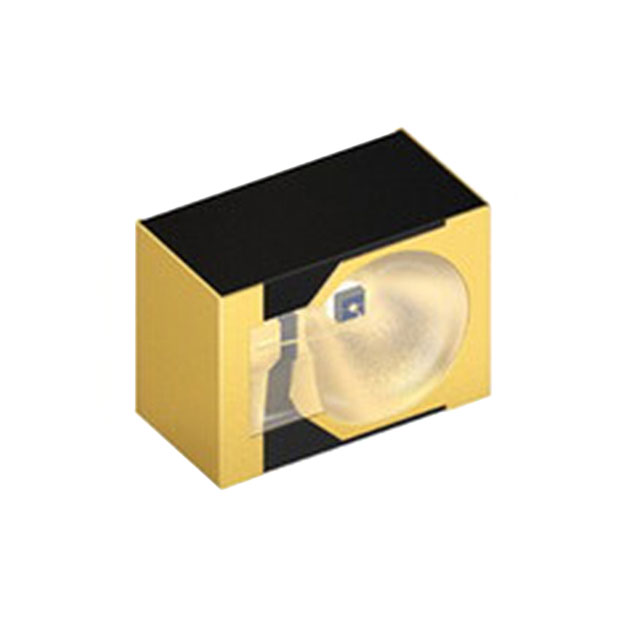

SFH 4655-Z

Active

ams-OSRAM USA INC.

EMITTER IR 860NM 100MA SMD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

EMITTER IR 860NM 100MA SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SFH 4655-Z

Current - DC Forward (If) (Max) [Max]	100 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Side View
Package / Case	2-SMD, No Lead
Radiant Intensity (Ie) Min @ If	100 mA
Radiant Intensity (Ie) Min @ If [Min]	90 mW/sr
Type	Infrared (IR)
Viewing Angle	30 °
Voltage - Forward (Vf) (Typ)	1.5 V
Wavelength	860 nm

EMITTER IR 860NM 100MA SMD

Part	Package / Case	Radiant Intensity (Ie) Min @ If [Min]	Radiant Intensity (Ie) Min @ If	Current - DC Forward (If) (Max) [Max]	Wavelength	Orientation	Viewing Angle	Voltage - Forward (Vf) (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type
ams-OSRAM USA INC. SFH 4655-Z	2-SMD, No Lead	90 mW/sr	100 mA	100 mA	860 nm	Side View	30 °	1.5 V	-40 °C	100 °C	Infrared (IR)	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 860nm 1.5V 100mA 90mW/sr @ 100mA 30° 2-SMD, No Lead
