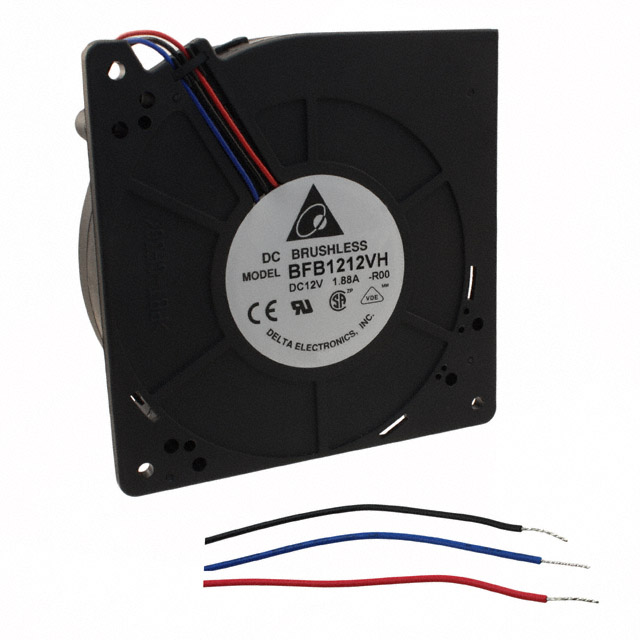

BFB1212VH-R00

Obsolete

Delta Electronics

FAN BLOWER 120X32MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans VDE Cert Datasheet +2

BFB1212VH-R00

Obsolete

Delta Electronics

FAN BLOWER 120X32MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans VDE Cert Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BFB1212VH-R00

Air Flow	39.6 CFM
Air Flow	1.11 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1.25 A
Fan Type	Blower
Features	Locked Rotor Sensor
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	56.5 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	15 W
RPM	3100 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	120 mm
Size / Dimension [z]	120 mm
Static Pressure	323.6 Pa
Static Pressure	1.3 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Weight	0.508 lb
Weight	230.42 g
Width [y]	32 mm

BFB1212 Series

Part	Static Pressure	Static Pressure	Approval Agency	Air Flow	Air Flow	RPM	Voltage - Rated	Noise	Width [y]	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Material - Frame	Current Rating (Amps)	Fan Type	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Power (Watts)	Termination	Material - Blade	Bearing Type	Weight	Weight	Features	Air Flow
Delta Electronics BFB1212VH-TA50	460.8 Pa	1.85 in H2O	CE CSA UL VDE	42.5 CFM	1.19 mł/min	3100 RPM	12 VDC	57 dB	32 mm	IP55 - Dust Protected Water Resistant	-10 °C	-10 °C	60 °C	60 °C	Plastic	1.47 A	Blower	Square/Rounded	120 mm	120 mm	50000 Hrs	5.5 VDC	13.8 VDC	17.64 W	2 Wire Leads	Plastic	Ball
Delta Electronics BFB1212VH-R00	323.6 Pa	1.3 in H2O	CE CSA UL VDE		1.11 m³/min	3100 RPM	12 VDC	56.5 dB	32 mm		-10 °C	-10 °C	60 °C	60 °C	Plastic	1.25 A	Blower	Square/Rounded	120 mm	120 mm	50000 Hrs			15 W	3 Wire Leads	Plastic	Ball	0.508 lb	230.42 g	Locked Rotor Sensor	39.6 CFM
Delta Electronics BFB1212GH-A	1019.8 Pa	4.094 in H2O	CE CSA UL VDE		1.69 m³/min	4400 RPM	12 VDC	65 dB	32 mm		-10 °C	-10 °C	60 °C	60 °C	Plastic	3.3 A	Blower	Square/Rounded	120 mm	120 mm	50000 Hrs			39.6 W	2 Wire Leads	Plastic	Ball				60.4 CFM
Delta Electronics BFB1212VH	323.6 Pa	1.3 in H2O	CE CSA UL VDE		1.11 m³/min	3100 RPM	12 VDC	56.5 dB	32 mm		-10 °C	-10 °C	60 °C	60 °C	Plastic	1.25 A	Blower	Square/Rounded	120 mm	120 mm	50000 Hrs			15 W	2 Wire Leads	Plastic	Ball	0.508 lb	230.42 g		39.6 CFM
Delta Electronics BFB1212VH-A	460.3 Pa	1.848 in H2O	CE CSA UL VDE	42.5 CFM	1.19 mł/min	3100 RPM	12 VDC	57 dB	32 mm		-10 °C	-10 °C	60 °C	60 °C	Plastic	1.47 A	Blower	Square/Rounded	120 mm	120 mm	50000 Hrs	5.5 VDC	13.8 VDC	17.64 W	2 Wire Leads	Plastic	Ball
Delta Electronics BFB1212EH-AF00	868.1 Pa	3.485 in H2O	CE CSA UL VDE		1.54 mł/min	4000 RPM	12 VDC	62 dB(A)	32 mm		-10 °C	-10 °C	60 °C	60 °C	Plastic	2.37 A	Blower	Square/Rounded	120 mm	120 mm	50000 Hrs	5.5 VDC	13.8 VDC	28.44 W	3 Wire Leads	Plastic	Ball			Locked Rotor Protection Speed Sensor (Tach)	54.9 CFM
Delta Electronics BFB1212EH-A	868.1 Pa	3.485 in H2O	CE CSA UL VDE		1.54 mł/min	4000 RPM	12 VDC	62 dB(A)	32 mm		-10 °C	-10 °C	60 °C	60 °C	Plastic	2.37 A	Blower	Square/Rounded	120 mm	120 mm	50000 Hrs	5.5 VDC	13.8 VDC	28.44 W	2 Wire Leads	Plastic	Ball				54.9 CFM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BFB1212 Series

Fan Blower 12VDC Square/Rounded - 120mm L x 120mm H Ball 39.6 CFM (1.11m³/min) 3 Wire Leads
