Q-1V02Q000R024i

Active

Amphenol Custom Cable

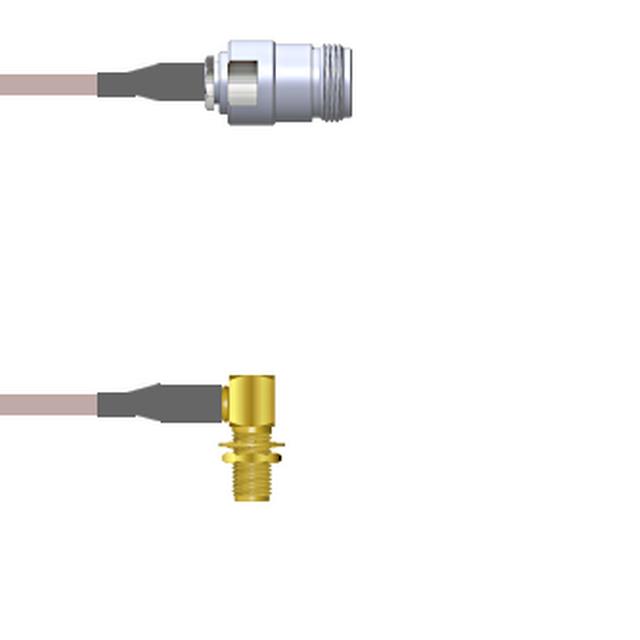

CBL ASSY SMA-NTYPE JACK-JACK 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1V02Q000R024i

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE JACK-JACK 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1V02Q000R024i

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-1V02Q0 Series

Part	Style	1st Contact Gender	Overall Impedance	2nd Connector Mounting Type	Frequency - Max [Max]	1st Connector Mounting Feature	Features	Length	Length	1st Connector Mounting Type	Cable Type	1st Connector	2nd Connector	Color	2nd Contact Gender	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1V02Q000R003i	SMA to N-Type	Female	50 Ohms	Free Hanging (In-Line)	11 GHz	Bulkhead - Front Side Nut	Shielded	3 in	76.2 mm	Panel Mount	RG-316 DB	Right Angle SMA Jack	N-Type Jack	Copper	Female
Amphenol Custom Cable Q-1V02Q000R048i	SMA to N-Type	Female	50 Ohms	Free Hanging (In-Line)	11 GHz	Bulkhead - Front Side Nut	Shielded	48 in	1200 mm	Panel Mount	RG-316 DB	Right Angle SMA Jack	N-Type Jack	Copper	Female	4 ft
Amphenol Custom Cable Q-1V02Q000R0.5M	SMA to N-Type	Female	50 Ohms	Free Hanging (In-Line)	11 GHz	Bulkhead - Front Side Nut	Shielded	19.69 "	50 cm	Panel Mount	RG-316 DB	Right Angle SMA Jack	N-Type Jack	Copper	Female
Amphenol Custom Cable Q-1V02Q000R009i	SMA to N-Type	Female	50 Ohms	Free Hanging (In-Line)	11 GHz	Bulkhead - Front Side Nut	Shielded	9 "	228.6 mm	Panel Mount	RG-316 DB	Right Angle SMA Jack	N-Type Jack	Copper	Female
Amphenol Custom Cable Q-1V02Q000R024i	SMA to N-Type	Female	50 Ohms	Free Hanging (In-Line)	11 GHz	Bulkhead - Front Side Nut	Shielded	24 "	609.6 mm	Panel Mount	RG-316 DB	Right Angle SMA Jack	N-Type Jack	Copper	Female
Amphenol Custom Cable Q-1V02Q000R2.5M	SMA to N-Type	Female	50 Ohms	Free Hanging (In-Line)	11 GHz	Bulkhead - Front Side Nut	Shielded	98.4 in	2.5 m	Panel Mount	RG-316 DB	Right Angle SMA Jack	N-Type Jack	Copper	Female	8.2 '
Amphenol Custom Cable Q-1V02Q000R060i	SMA to N-Type	Female	50 Ohms	Free Hanging (In-Line)	11 GHz	Bulkhead - Front Side Nut	Shielded	5 '	1.5 m	Panel Mount	RG-316 DB	Right Angle SMA Jack	N-Type Jack	Copper	Female	5 ft
Amphenol Custom Cable Q-1V02Q000R006i	SMA to N-Type	Female	50 Ohms	Free Hanging (In-Line)	11 GHz	Bulkhead - Front Side Nut	Shielded	6 in	152.4 mm	Panel Mount	RG-316 DB	Right Angle SMA Jack	N-Type Jack	Copper	Female
Amphenol Custom Cable Q-1V02Q000R084i	SMA to N-Type	Female	50 Ohms	Free Hanging (In-Line)	11 GHz	Bulkhead - Front Side Nut	Shielded	84 in	2.1 m	Panel Mount	RG-316 DB	Right Angle SMA Jack	N-Type Jack	Copper	Female	7 ft
Amphenol Custom Cable Q-1V02Q000R018i	SMA to N-Type	Female	50 Ohms	Free Hanging (In-Line)	11 GHz	Bulkhead - Front Side Nut	Shielded			Panel Mount	RG-316 DB	Right Angle SMA Jack	N-Type Jack	Copper	Female		457.2 mm	457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 224.47
		25	$ 221.95
		50	$ 219.44
		100	$ 216.92
		250	$ 214.41

Description

General part information

Q-1V02Q0 Series

Cable Assembly Coaxial SMA to N-Type RG-316 DB 24.00" (609.60mm)
