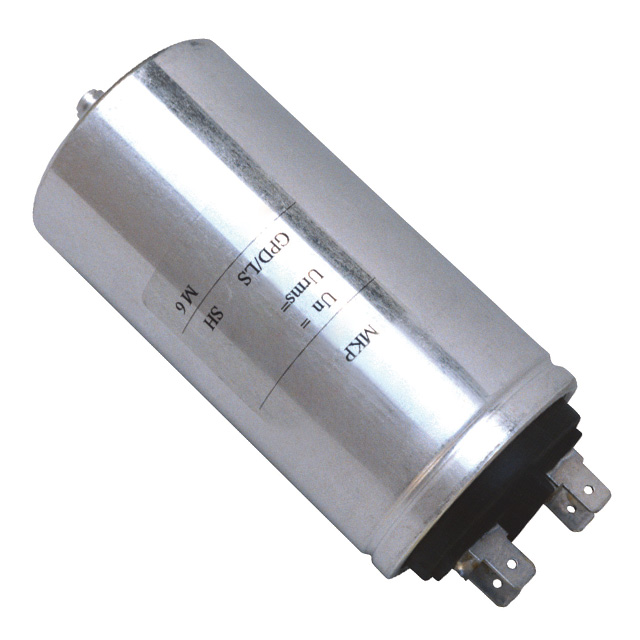

C44AHFP5300ZC0J

Active

KEMET

CAP FILM 30UF 5% 600VDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 30UF 5% 600VDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	C44AHFP5300ZC0J

Applications	General Purpose
Capacitance	30 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	2 mOhms
Height - Seated (Max) [Max] [z]	4.055 in
Height - Seated (Max) [Max] [z]	103 mm
Lead Spacing	22.3 mm
Lead Spacing	0.878 in
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	1.969 in
Size / Dimension [diameter]	50 mm
Termination	Threaded, Male
Tolerance	5 %
Voltage Rating - AC	330 V
Voltage Rating - DC	600 V

CAP FILM 30UF 5% 600VDC RADIAL

Part	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Capacitance	Voltage Rating - DC	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Mounting Type	Lead Spacing	Lead Spacing	Termination	ESR (Equivalent Series Resistance)	Voltage Rating - AC	Size / Dimension [diameter]	Size / Dimension [diameter]	Dielectric Material
KEMET C44AHFP5300ZC0J	85 °C	-40 °C	5 %	30 µF	600 V	Radial, Can	4.055 in	103 mm	General Purpose	Chassis, Stud Mount	22.3 mm	0.878 in	Threaded, Male	2 mOhms	330 V	1.969 in	50 mm	Metallized, Polypropylene (PP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 µF Film Capacitor 330V 600V Polypropylene (PP), Metallized Radial, Can
