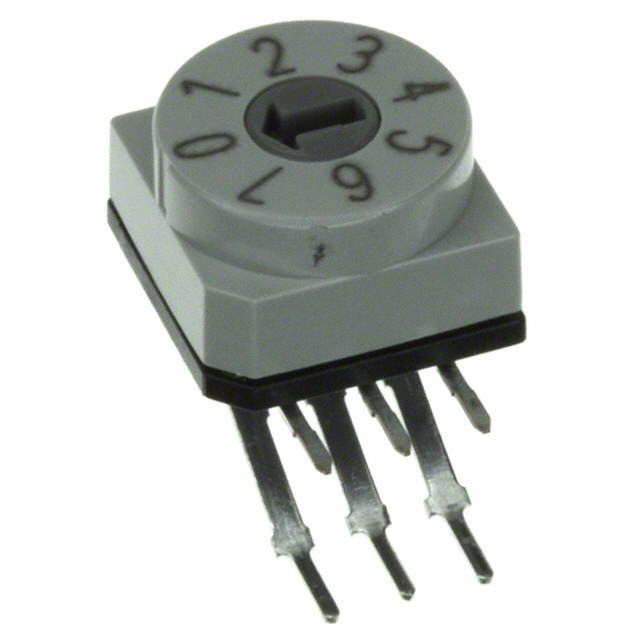

PT65127L508
ActiveAPEM
SW ROTARY DIP OCT COMP 0.15A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PT65127L508
ActiveAPEM
SW ROTARY DIP OCT COMP 0.15A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PT65127L508 |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Body Material | Thermoplastic |
| Circuit | Octal Complement |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Features | Sealed - Flux Protection |
| Height Above Board [z] | 10 mm |
| Height Above Board [z] | 0.394 in |
| Length | 10 mm |
| Length | 0.394 in |
| Mechanical Life | 10000 Steps |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | PC Pin |
| Voltage Rating | 24 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 50 | $ 8.78 | |
Description
General part information
PT65127 Series
Dip Switch Octal Complement 8 Position Through Hole, Right Angle Rotary for Tool Actuator 150mA 24VDC
