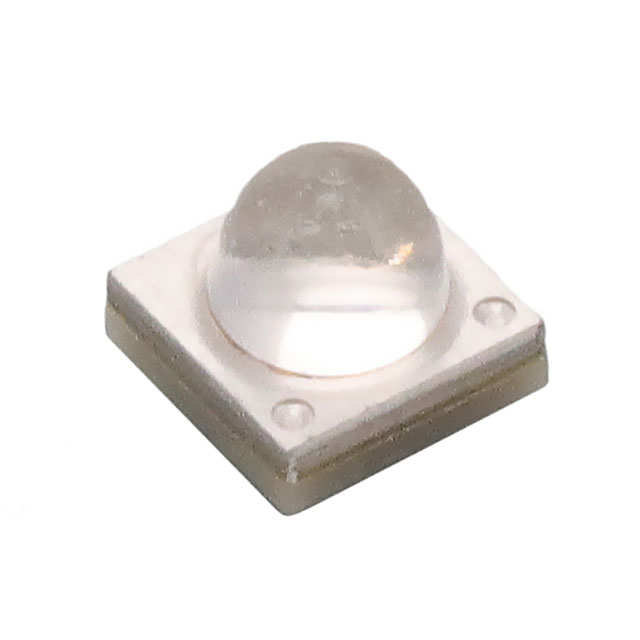

ELUA3535NU3-P6070U23648700-V41G

Active

Everlight Electronics Co Ltd

UVA 3535 PACKAGE, 4W, 30 DEGREE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ELUA3535NU3-P6070U23648700-V41G

Active

Everlight Electronics Co Ltd

UVA 3535 PACKAGE, 4W, 30 DEGREE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ELUA3535NU3-P6070U23648700-V41G

Current - DC Forward (If) (Max) [Max]	700 mA
Mounting Type	Surface Mount
Orientation	Top View
Package / Case	3535 Metric
Package / Case	1414
Type	Ultraviolet (UV)
Viewing Angle	30 °
Voltage - Forward (Vf) (Typ)	4.2 V
Wavelength	365 nm
Wavelength [Max]	370 nm
Wavelength [Min]	360 nm

ELUA3535 Series

Part	Viewing Angle	Wavelength [Max]	Wavelength	Wavelength [Min]	Package / Case	Package / Case	Type	Voltage - Forward (Vf) (Typ)	Mounting Type	Orientation	Current - DC Forward (If) (Max)	Current - DC Forward (If) (Max) [Max]
Everlight Electronics Co Ltd ELUA3535NU3-P0010U5136481K0-V41G	30 °	410 nm	405 nm	400 nm	3535 Metric	1414	Ultraviolet (UV)	4.2 V	Surface Mount	Top View	1 A
Everlight Electronics Co Ltd ELUA3535OG5-P8090U23240500-VD1M	50 °		385 nm		3535 Metric	1414	Ultraviolet (UV)	3.6 V	Surface Mount	Top View	1 A
Everlight Electronics Co Ltd ELUA3535OGB-P0010U23240500-VD1M	120 °	410 nm	405 nm	400 nm	3535 Metric	1414	Ultraviolet (UV)	3.6 V	Surface Mount	Top View	1 A
Everlight Electronics Co Ltd ELUA3535OG5-P6070U13240500-VD1M	50 °	370 nm	365 nm	360 nm	3535 Metric	1414	Ultraviolet (UV)	3.6 V	Surface Mount	Top View		700 mA
Everlight Electronics Co Ltd ELUA3535NU3-P8090U5136481K0-V41G	30 °		385 nm		3535 Metric	1414	Ultraviolet (UV)	4.2 V	Surface Mount	Top View	1 A
Everlight Electronics Co Ltd ELUA3535NU3-P6070U23648700-V41G	30 °	370 nm	365 nm	360 nm	3535 Metric	1414	Ultraviolet (UV)	4.2 V	Surface Mount	Top View		700 mA
Everlight Electronics Co Ltd ELUA3535NU3-P9000U5136481K0-V41G	30 °	400 nm	395 nm	390 nm	3535 Metric	1414	Ultraviolet (UV)	4.2 V	Surface Mount	Top View	1 A
Everlight Electronics Co Ltd ELUA3535NU6-P6070U23648700-V41G	60 °	370 nm	365 nm	360 nm	3535 Metric	1414	Ultraviolet (UV)	4.2 V	Surface Mount	Top View		700 mA
Everlight Electronics Co Ltd ELUA3535OGB-P9000U23240500-VD1M	120 °	400 nm	395 nm	390 nm	3535 Metric	1414	Ultraviolet (UV)	3.6 V	Surface Mount	Top View	1 A
Everlight Electronics Co Ltd ELUA3535OG5-P9000U23240500-VD1M	50 °	400 nm	395 nm	390 nm	3535 Metric	1414	Ultraviolet (UV)	3.6 V	Surface Mount	Top View	1 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 12.10
		10	$ 8.77
		100	$ 7.25
	Digi-Reel®	1	$ 12.10
		10	$ 8.77
		100	$ 7.25
	Tape & Reel (TR)	400	$ 7.25
		800	$ 6.14
		1200	$ 6.00

Description

General part information

ELUA3535 Series

Ultraviolet (UV) Emitter 365nm (360nm ~ 370nm) 4.2V 700mA 30° 1414 (3535 Metric)
