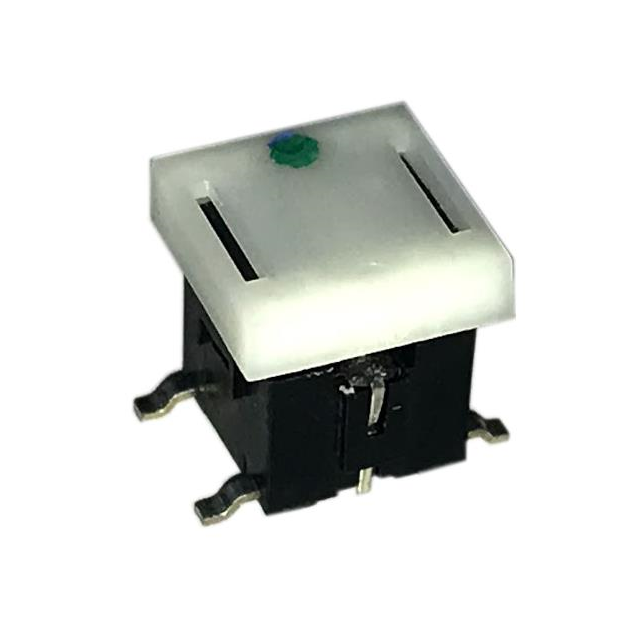

228FMVABBR

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	228FMVABBR	228FMVA Series

Actuator Height off PCB, Vertical	7.7 mm	7.7 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Square Button	Plunger for Cap, Square Button
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Illuminated	Illuminated
Illumination Type, Color	LED, Blue	Blue/Red, LED, Amber, Blue
Illumination Voltage (Nominal)	-	2 - 3.2 VDC
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline [x]	7.5 mm	7.5 mm
Outline [y]	7.5 mm	7.5 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	Gull Wing	Gull Wing

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Switch Travel	Circuit	Outline [y]	Outline [x]	Mechanical Life	Actuator Orientation	Illumination Voltage (Nominal)	Termination Style	Actuator Height off PCB, Vertical	Illumination Type, Color	Contact Rating @ Voltage	Illumination	Actuator Type	Mounting Type
CTS Electrocomponents 228FMVARBR	Off-Mom	-20 C	70 °C	0.25 mm	SPST-NO	7.5 mm	7.5 mm	100000 Cycles	Top Actuated	2.1 VDC, 3.2 VDC	Gull Wing	7.7 mm	Blue/Red, LED	0.05 A, 12 VDC	Illuminated	Plunger for Cap	Surface Mount
CTS Electrocomponents 228FMVAABR	Off-Mom	-20 C	70 °C	0.25 mm	SPST-NO	7.5 mm	7.5 mm	100000 Cycles	Top Actuated	2 VDC	Gull Wing	7.7 mm	Amber, LED	0.05 A, 12 VDC	Illuminated	Plunger for Cap	Surface Mount
CTS Electrocomponents 228FMVABBR	Off-Mom	-20 C	70 °C	0.25 mm	SPST-NO	7.5 mm	7.5 mm	100000 Cycles	Top Actuated		Gull Wing	7.7 mm	Blue, LED	0.05 A, 12 VDC	Illuminated	Square Button	Surface Mount
