3527

Active

Kitronik Ltd.

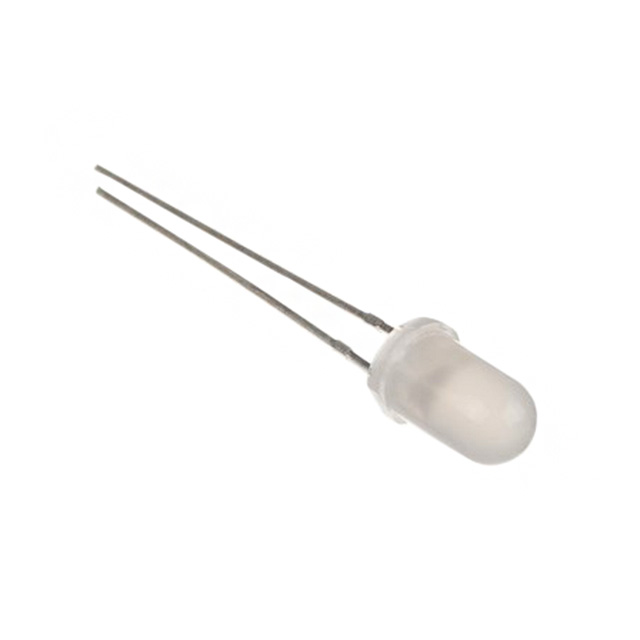

LED RGB DIFFUSED 5MM T/H

Search across all available documentation for this part.

Active

Kitronik Ltd.

LED RGB DIFFUSED 5MM T/H

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3527	- Series

Color	Red, Green, Blue	Red, Green, Blue
Configuration	-	Robot Components
Contents	-	Board(s), Servo(s), Hardware
Current - Test	25 mA	25 mA
Features	Cycling	Cycling
Function	-	LED Board
Height (Max) [Max]	9 mm	9 mm
Interconnect System	-	Raspberry Pi Pico
Lens Color	White	White
Lens Size	T-1 3/4	T-3 1/8, T-1 3/4
Lens Size	5 mm	5 - 10 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Diffused	Diffused
Millicandela Rating	-	750 mcd
Millicandela Rating [custom]	500 mcd	500 mcd
Millicandela Rating [custom]	330 mcd	330 mcd
Millicandela Rating [custom]	750 mcd	750 mcd
Mounting Type	Through Hole	Through Hole
Package / Case	Radial	Radial
Suggested Programming Environment	-	Python
Supplier Device Package	5 mm	5 - 10 mm
Viewing Angle	30 °	30 °
Voltage - Forward (Vf) (Typ)	4.5 V	3.85 - 4.5 V
Wavelength - Dominant	525 nm, 625 nm, 470 nm	470 - 625 nm

LED ENG WH LNR LGT STRIP 6500K

Part	Contents	Function	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Package / Case	Millicandela Rating	Current - Test	Mounting Type	Lens Transparency	Features	Color	Lens Style	Lens Size	Lens Size	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Dominant	Height (Max) [Max]	Viewing Angle	Lens Color	Configuration	Interconnect System	Suggested Programming Environment
Kitronik Ltd. 3562	Board(s)	LED Board
Kitronik Ltd. 3544			10 mm	3.85 V	Radial	750 mcd	25 mA	Through Hole	Diffused	Cycling	Blue, Green, Red	Round with Domed Top	T-3 1/8	10 mm
Kitronik Ltd. 3527			5 mm	4.5 V	Radial		25 mA	Through Hole	Diffused	Cycling	Blue, Green, Red	Round with Domed Top	T-1 3/4	5 mm	500 mcd	330 mcd	750 mcd	470 nm, 525 nm, 625 nm	9 mm	30 °	White
Kitronik Ltd. 5344	Hardware, Servo(s)																					Robot Components	Raspberry Pi Pico	Python
Kitronik Ltd. 35157	Board(s)	LED Board
Kitronik Ltd. 35158	Board(s)	LED Board
Kitronik Ltd. 3561	Board(s)	LED Board

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) 625nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 4.5V Radial
