M4PC,GY

Active

Serpac

BOX ABS GRAY 2.8"L X 2.2"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 2.8"L X 2.2"W

Technical Specifications

Parameters and characteristics for this part

Specification	M4PC,GY

Area (L x W) [custom]	39.7 cm²
Area (L x W) [custom]	6.15 in²
Color	Gray
Container Type	Box
Features	AA, Pocket Clip, Battery Compartment
Height [z]	0.71 in
Height [z]	18.03 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	2.8 in
Size / Dimension [x]	71.12 mm
Size / Dimension [y]	2.2 in
Size / Dimension [y]	55.88 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.055 lb
Weight	24.95 g

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Container Type	Thickness	Thickness	Features	Ratings	Material	Material Flammability Rating	Color	Area (L x W) [custom]	Area (L x W) [custom]	Height [z]	Height [z]	Weight	Weight
Serpac M4PC,GY	2.8 in	2.2 in	71.12 mm	55.88 mm	Box	2.54 mm	0.1 in	AA Battery Compartment Pocket Clip	IP40	Plastic ABS	UL94 HB	Gray	39.7 cm²	6.15 in²	0.71 in	18.03 mm	0.055 lb	24.95 g
Serpac M4PC,BK	2.8 in	2.2 in	71.12 mm	55.88 mm	Box	2.54 mm	0.1 in	AA Battery Compartment Pocket Clip	IP40	Plastic ABS	UL94 HB	Black	39.7 cm²	6.15 in²	0.71 in	18.03 mm	0.055 lb	24.95 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

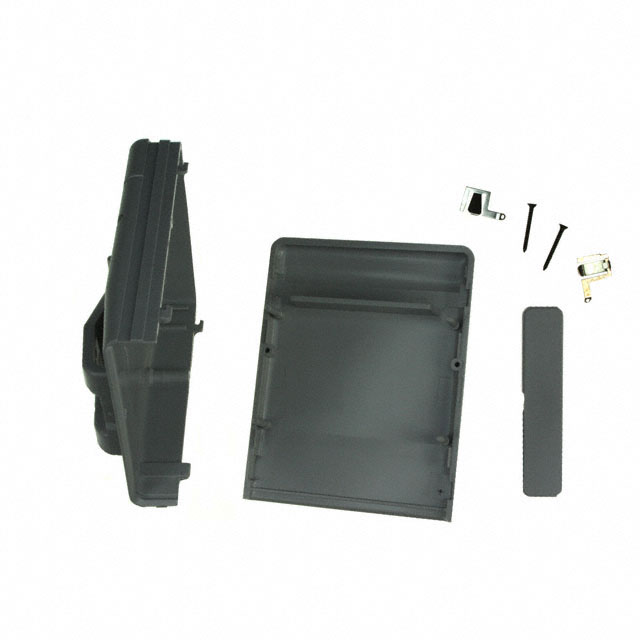

Box Plastic, ABS Gray Hand Held, Split Sides and End Panel(s) 2.800" L x 2.200" W (71.12mm x 55.88mm) X 0.710" (18.03mm)
