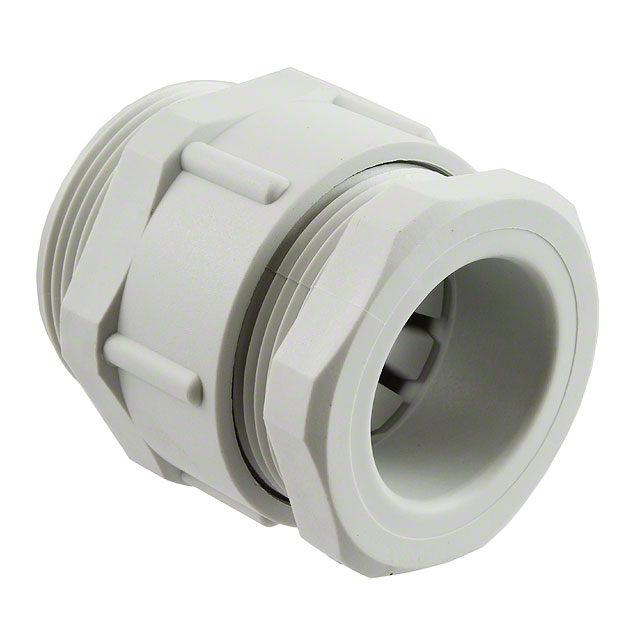

12052409

Obsolete

Bopla Enclosures

CABLE GLAND 18.01-24MM PG29

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

12052409

Obsolete

Bopla Enclosures

CABLE GLAND 18.01-24MM PG29

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

12052 Series

Cable Gland Polyamide (PA), Nylon PG29 Gray

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	12052409	12052 Series

Color	Gray	Gray
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-30 ░C	-30 - -20 C
Outside Cable Diameter (Max)	-	0.236 - 0.709 in
Outside Cable Diameter (Max)	-	6 - 18.01 mm
Outside Cable Diameter (Max) [Max]	24 mm	14 - 24 mm
Outside Cable Diameter (Max) [Max]	0.945 in	0.551 - 0.945 in
Outside Cable Diameter (Min)	-	0.157 in
Outside Cable Diameter (Min)	-	4 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.709 in	0.236 - 0.709 in
Outside Cable Diameter (Min) [Min] [diameter]	18.01 mm	6 - 18.01 mm
Thread Length	0.433 in	0.315 - 0.433 in
Thread Length	11 mm	8 - 11 mm
Thread Size	PG29	PG7, PG11, PG9, PG29, PG13, PG21, PG16
Type	Cable Gland	Cable Gland

12052 Series

CABLE GLAND 4-6MM PG7 POLYAMIDE

Part	Ingress Protection	Type	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Color	Material	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
Bopla Enclosures 12052609	IP65 - Dust Tight, Water Resistant	Cable Gland	100 °C	-20 C	0.236 in	6 mm	PG7	Gray	Polyamide (PA), Nylon	8 mm	0.315 in	0.157 in	4 mm
Bopla Enclosures 12052809	IP65 - Dust Tight, Water Resistant	Cable Gland	100 °C	-30 ░C	0.394 "	10 mm	PG11	Gray	Polyamide (PA), Nylon	8 mm	0.315 in			8 mm	0.315 in
Bopla Enclosures 12052709	IP65 - Dust Tight, Water Resistant	Cable Gland	100 °C	-20 C	0.315 in	8 mm	PG9	Gray	Polyamide (PA), Nylon	8 mm	0.315 in			6 mm	0.236 in
Bopla Enclosures 12052409	IP65 - Dust Tight, Water Resistant	Cable Gland	100 °C	-30 ░C			PG29	Gray	Polyamide (PA), Nylon	11 mm	0.433 in			18.01 mm	0.709 in	24 mm	0.945 in
Bopla Enclosures 12052909	IP65 - Dust Tight, Water Resistant	Cable Gland	100 °C	-30 ░C	0.472 in	12 mm	PG13	Gray	Polyamide (PA), Nylon	9 mm	0.354 in			10 mm	0.394 in
Bopla Enclosures 12052109	IP65 - Dust Tight, Water Resistant	Cable Gland	100 °C	-20 C	0.472 in	12 mm	PG13	Gray	Polyamide (PA), Nylon	9 mm	0.354 in			10 mm	0.394 in
Bopla Enclosures 12052309	IP65 - Dust Tight, Water Resistant	Cable Gland	100 °C	-20 C	0.709 in	18.01 mm	PG21	Gray	Polyamide (PA), Nylon	11 mm	0.433 in			14 mm	0.551 in
Bopla Enclosures 12052009	IP65 - Dust Tight, Water Resistant	Cable Gland	100 °C	-30 ░C	0.394 "	10 mm	PG11	Gray	Polyamide (PA), Nylon	8 mm	0.315 in			8 mm	0.315 in
Bopla Enclosures 12052209	IP65 - Dust Tight, Water Resistant	Cable Gland	100 °C	-20 C			PG16	Gray	Polyamide (PA), Nylon	10 mm	0.394 in			12 mm	0.472 in	14 mm	0.551 "
