1326460-1

Active

TE Connectivity AMP Connectors

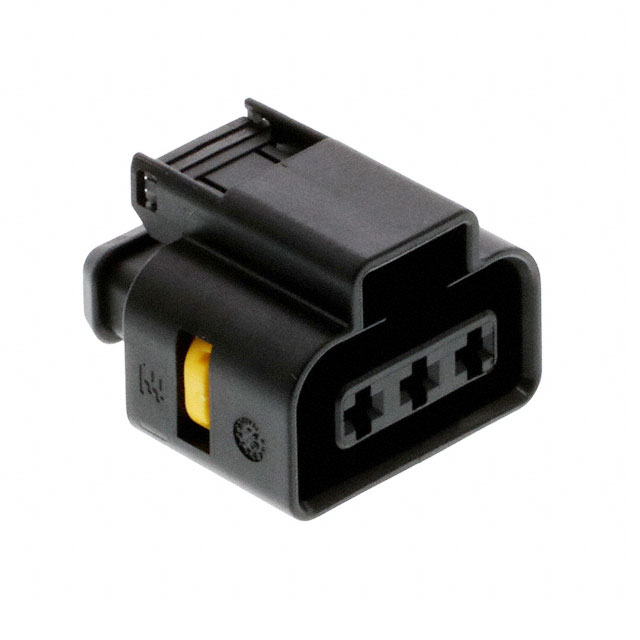

CONN PLUG HSG 3POS 6.50MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 3POS 6.50MM

Technical Specifications

Parameters and characteristics for this part

Specification	1326460-1

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	IP67, Sealed
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	6.5 mm
Pitch [x]	0.256 in

CONN PLUG HSG 3POS 6.50MM

Part	Features	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Note	Contact Termination	Number of Rows	Color	Insulation Material	Contact Type	Connector Type	Mounting Type
TE Connectivity AMP Connectors 1326460-1	IP67, Sealed	Latch Holder	85 °C	-40 °C	6.5 mm	0.256 in	Contacts Not Included	Crimp	1	Black	Glass Filled, Nylon, Polyamide (PA)	Female Socket	Plug	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Rectangular Connectors - Housings Plug Black 0.256" (6.50mm)

Technical documentation and resources

No documents available
