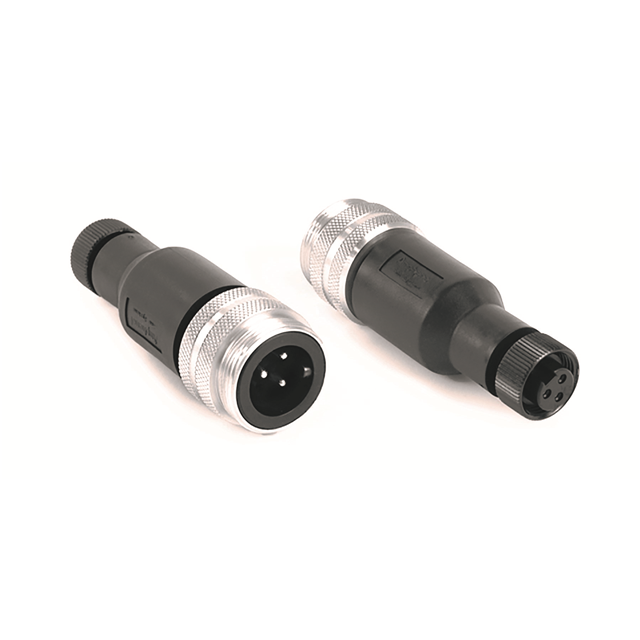

P28974

Active

Amphenol Sine Systems Corp

MALE M35 TO FEMALE M22 DROP, (1

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P28974

Active

Amphenol Sine Systems Corp

MALE M35 TO FEMALE M22 DROP, (1

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	P28974

Connector Style	Standard
Convert From (Adapter End)	Male Pins
Convert To (Adapter End)	Female Sockets
Current Rating (Amps)	15 A
Features	Coupling Nut
Housing Color	Black
Housing Material	Thermoplastic
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	3
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Orientation (Convert From)	Keyed
Orientation (Convert To)	Keyed
Shell Size - Insert (Convert From)	M35
Shell Size - Insert (Convert To) [custom]	M22
Shielding	Unshielded
Voltage Rating	600 VAC

P289 Series

Part	Shell Size - Insert (Convert To) [custom]	Convert To (Adapter End)	Features	Number of Positions (Convert From)	Mounting Type	Shielding	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Connector Style	Housing Material	Shell Size - Insert (Convert From)	Orientation (Convert From)	Number of Positions (Convert To)	Current Rating (Amps)	Material Flammability Rating	Ingress Protection	Orientation (Convert To)	Convert From (Adapter End)	Usage	2nd Connector Type	1st Connector Type	1st Connector Shell Size - Insert	1st Connector Orientation [custom]	Cable Material	Assembly Configuration	1st Connector Gender	Cable Type	1st Connector Number of Positions	Color	1st Connector Mounting Type	1st Connector Number of Positions Loaded	Length [x]	Length [x]	Shell Size - Insert (Convert To) [custom]	Number of Positions (Convert To)	2nd Connector Shell Size - Insert	2nd Connector Mounting Type	2nd Connector Gender	2nd Connector Number of Positions	2nd Connector Number of Positions Loaded
Amphenol Sine Systems Corp P28968	M35	Female Sockets (1) Male Pins (1)	Coupling Nut	4	Free Hanging (In-Line)	Unshielded	600 VAC	90 °C	-40 °C	Black	Distributor T-Shaped	Thermoplastic	M22	Keyed	4	15 A	UL94 V-0	IP67 - Dust Tight Waterproof	Keyed	Female Sockets
Amphenol Sine Systems Corp P28992-M2						Unshielded												IP67 - Dust Tight Waterproof			Industrial Environments	Wire Leads	Receptacle	M35	Keyed	Polyvinyl Chloride (PVC)	Standard	Male Pins	Round	4	Black	Free Hanging (In-Line)	All	2 m	6.56 ft
Amphenol Sine Systems Corp P28974		Female Sockets	Coupling Nut	3	Free Hanging (In-Line)	Unshielded	600 VAC	90 °C	-40 °C	Black	Standard	Thermoplastic	M35	Keyed		15 A	UL94 V-0	IP67 - Dust Tight Waterproof	Keyed	Male Pins																M22
Amphenol Sine Systems Corp P28966	M35	Female Sockets (1) Male Pins (1)	Coupling Nut	3	Free Hanging (In-Line)	Unshielded	600 VAC	90 °C	-40 °C	Black	Distributor T-Shaped	Thermoplastic	M35	Keyed	3	30 A	UL94 V-0	IP67 - Dust Tight Waterproof	Keyed	Female Sockets																	2
Amphenol Sine Systems Corp P28996-M2						Unshielded												IP67 - Dust Tight Waterproof			Industrial Environments	Wire Leads	Plug	M35	Keyed	Polyvinyl Chloride (PVC)	Standard	Female Sockets	Round	4	Black	Free Hanging (In-Line)	All	2 m	6.56 ft
Amphenol Sine Systems Corp P28992-M10						Unshielded												IP67 - Dust Tight Waterproof			Industrial Environments	Wire Leads	Receptacle	M35	Keyed	Polyvinyl Chloride (PVC)	Standard	Male Pins	Round	4	Black	Free Hanging (In-Line)	All
Amphenol Sine Systems Corp P28976-M2						Unshielded												IP67 - Dust Tight Waterproof			Industrial Environments	Plug	Receptacle	M35	Keyed	Polyvinyl Chloride (PVC)	Standard	Male Pins	Round	4	Black	Free Hanging (In-Line)	All	2 m	6.56 ft			M35	Free Hanging (In-Line)	Female Sockets	4	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10	$ 45.52

Description

General part information

P289 Series

Circular Connector Standard 3/3 Male Pins/Female Sockets Free Hanging (In-Line)
