GK3LAC-P16NFH2-000L

Active

ODU

PANEL RECEPTACLE, STY GK, SER L,

Search across all available documentation for this part.

Active

ODU

PANEL RECEPTACLE, STY GK, SER L,

Technical Specifications

Parameters and characteristics for this part

Specification	GK3LAC-P16NFH2-000L

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Medical (IEC 60601 (2 MOOP/2 MOPP))
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	16
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	3
Shielding	Shielded
Termination	Crimp
Voltage Rating	48 VDC

Part	Orientation	Voltage Rating	Number of Positions	Termination	Applications	Fastening Type	Connector Type	Current Rating (Amps)	Contact Material	Contact Finish - Mating	Shell Material	Insert Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Primary Material	Shielding	Ingress Protection	Shell Size - Insert	Mounting Feature	Color
ODU GK3LAC-P16NFH2-000L	A	48 VDC	16	Crimp	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	Receptacle Female Sockets	10 A	Brass	Gold	Brass	Polyetheretherketone (PEEK)	Medical (IEC 60601 (2 MOOP/2 MOPP))	-40 °C	120 °C	Chrome over Nickel	Metal	Shielded	IP50	3	Bulkhead - Front Side Nut	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

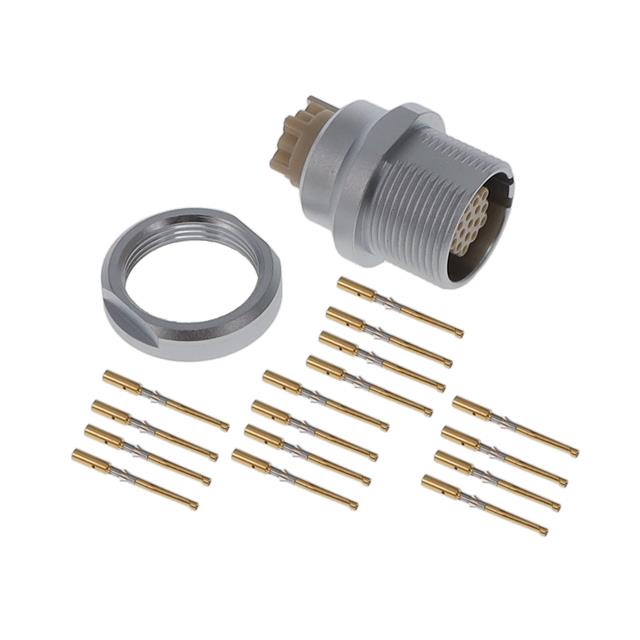

16 Position Circular Connector Receptacle, Female Sockets Crimp
