5320FL 002U1000

Active

Belden Inc.

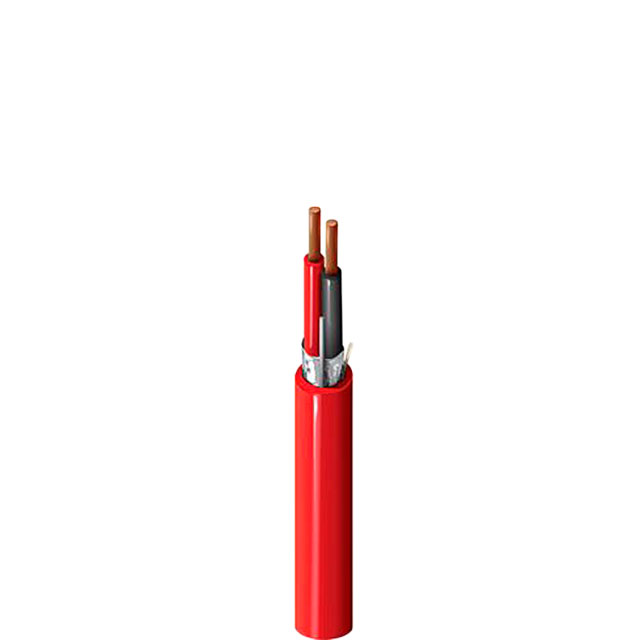

CABLE 2COND 18AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 18AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	5320FL 002U1000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.147 in
Jacket (Insulation) Diameter [diameter]	3.73 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	18 AWG

Part	Features	Conductor Strand	Length	Length	Conductor Insulation	Shield Coverage	Usage	Shield Material	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Jacket (Insulation) Material	Wire Gauge	Conductor Material	Cable Type	Voltage
Belden Inc. 5320FL 0071000	Drain Wire Rip Cord	Solid	1000 ft	304.8 m	Polypropylene (PP)	100 %	Alarm Safety	Aluminum	2	0.147 in	3.73 mm	Violet	0.432 mm	0.017 in	Foil	Poly-Vinyl Chloride (PVC) Riser	18 AWG	Copper Bare	Multi-Conductor	300 V
Belden Inc. 5320FL 002U1000	Drain Wire Rip Cord	Solid	1000 ft	304.8 m	Polypropylene (PP)	100 %	Alarm Safety	Aluminum	2	0.147 in	3.73 mm	Red	0.432 mm	0.017 in	Foil	Poly-Vinyl Chloride (PVC) Riser	18 AWG	Copper Bare	Multi-Conductor	300 V
Belden Inc. 5320FL 0041000	Drain Wire Rip Cord	Solid	1000 ft	304.8 m	Polypropylene (PP)	100 %	Alarm Safety	Aluminum	2	0.147 in	3.73 mm	Yellow	0.432 mm	0.017 in	Foil	Poly-Vinyl Chloride (PVC) Riser	18 AWG	Copper Bare	Multi-Conductor	300 V
Belden Inc. 5320FL 0101000	Drain Wire Rip Cord	Solid	1000 ft	304.8 m	Polypropylene (PP)	100 %	Alarm Safety	Aluminum	2	0.147 in	3.73 mm	Black	0.432 mm	0.017 in	Foil	Poly-Vinyl Chloride (PVC) Riser	18 AWG	Copper Bare	Multi-Conductor	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.21

General part information

2 Conductor Multi-Conductor Cable Red 18 AWG Foil 1000.0' (304.8m)
