NPPN122FJFN-RC

Active

Sullins Connector Solutions

CONN HDR 24P 0.079 GOLD PCB R/A

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN HDR 24P 0.079 GOLD PCB R/A

Technical Specifications

Parameters and characteristics for this part

Specification	NPPN122FJFN-RC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.191 in
Insulation Height	4.85 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

Part	Insulation Color	Contact Type	Contact Material	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Insulation Material	Fastening Type	Contact Shape	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Number of Positions	Number of Positions Loaded	Number of Rows	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Termination	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Current Rating (Amps)	Features	Contact Length - Post [x]
Sullins Connector Solutions NPPN122FJFN-RC	Black	Female Socket	Phosphor Bronze	Header	0.079 in	2 mm	UL94 V-0	Nylon 6T Polyamide (PA6T)	Push-Pull	Square	Through Hole Right Angle	0.079 in	2 mm	Gold	0.191 in	4.85 mm	24	All	2	Gold	0.118 in	3 mm	Solder	Flash	-40 °C	105 ░C	Flash
Sullins Connector Solutions NPPN122GFNP-M81RC	Black	Female Socket	Phosphor Bronze	Header Top or Bottom Entry	0.079 in	2 mm	UL94 V-0	Nylon 6T Polyamide (PA6T)	Push-Pull	Square	Surface Mount	0.079 in	2 mm	Gold			24	All	2	Gold			Solder	Flash	-40 °C	105 ░C	Flash	2 A	Board Guide Pick and Place
Sullins Connector Solutions NPPN122AFEN-RC	Black	Female Socket	Phosphor Bronze	Header	0.079 in	2 mm	UL94 V-0	Nylon 6T Polyamide (PA6T)	Push-Pull	Square	Through Hole	0.079 in	2 mm	Gold	0.169 "	4.3 mm	24	All	2	Gold		2.79 mm	Solder	Flash	-40 °C	105 ░C	Flash			0.11 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

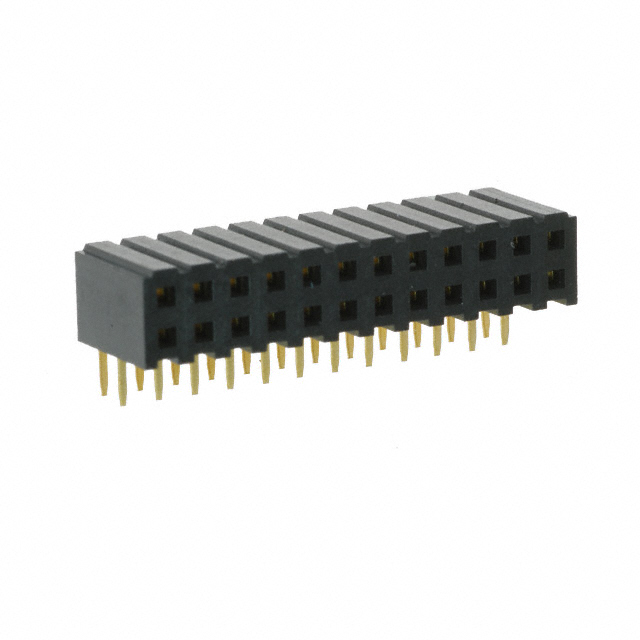

24 Position Header Connector 0.079" (2.00mm) Through Hole, Right Angle Gold
