ISL43210IHZ-T

Active

Renesas Electronics Corporation

LOW-VOLTAGE, SINGLE SUPPLY, SINGLE SPDT ANALOG SWITCH

Find alt

Alpha

ISL43210IHZ-T

Active

Renesas Electronics Corporation

LOW-VOLTAGE, SINGLE SUPPLY, SINGLE SPDT ANALOG SWITCH

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

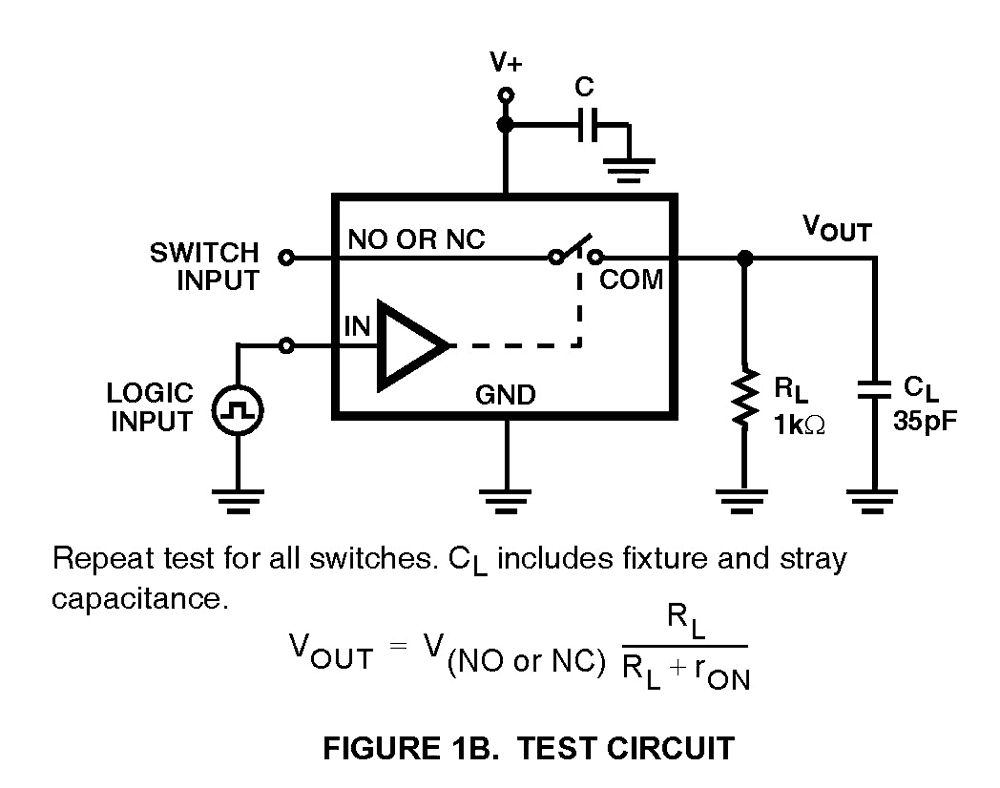

Description

General part information

ISL43210 Series

The Intersil ISL43210A device is a precision, bidirectional, single SPDT analog switch designed to operate from a single +2. 7V to +15V supply. Targeted applications include applications that require a +15V single supply such as 3D TV/Eyeware products and single supply +3. 0V/+5V battery powered equipment that benefit from the devices low power consumption (5µW), low leakage currents (10nA max), and fast switching speeds (tON= 28ns, tOFF= 20ns). Cell phones, for example, often face ASIC functionality limitations. The number of analog input or GPIO pins may be limited and digital geometries are not well suited to analog switch performance. This device may be used to mux-in additional functionality while reducing ASIC design risk. Its small package alleviates board space limitations, making it an ideal solution. The ISL43210A is a single committed SPDT, which is perfect for use in 2-to-1 multiplexer applications.

Technical Specifications

Parameters and characteristics for this part

Specification	ISL43210IHZ-T

Channel Capacitance (CD(off))	8 pF
Channel Capacitance (CS(off))	8 pF
Channel-to-Channel Matching (ΔRon)	800 mOhm
Charge Injection	5 pC
Crosstalk	-105 dB
Current - Leakage (Max)	3 nA
Demultiplexer Outputs	1
Mounting Type	Surface Mount
Multiplexer Inputs	2
Number of Circuits	1
On-State Resistance (Max)	20 Ohms
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	SOT-23-6
Package Name	6-SOT
Switch Circuit Type	SPDT
Switch Time Toff (Typ)	17 ns
Switch Time Ton (Max)	25 ns
Voltage - Supply, Single (V+) (Maximum)	12 V
Voltage - Supply, Single (V+) (Minimum)	2.7 V

ISL43210 Series

Medium-Voltage, Single Supply, Single SPDT Analog Switch

Part	Number of Circuits	Package Name	Current - Leakage (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Multiplexer Inputs	Demultiplexer Outputs	Mounting Type	Package / Case	Switch Time Ton (Max)	Switch Time Toff (Typ)	Charge Injection	On-State Resistance (Max)	Crosstalk	Channel-to-Channel Matching (ΔRon)	Voltage - Supply, Single (V+) (Maximum)	Voltage - Supply, Single (V+) (Minimum)	Switch Circuit Type	Channel Capacitance (CS(off))	Channel Capacitance (CD(off))
Renesas Electronics Corporation ISL43210IHZ-T7A	1	6-SOT	3 nA	85 °C	-40 °C	2	1	Surface Mount	SOT-23-6	25 ns	17 ns	5 pC	20 Ohms	-105 dB	800 mOhm	12 V	2.7 V	SPDT	8 pF	8 pF
Renesas Electronics Corporation ISL43210AIHZ-T	1	6-SOT	3 nA	85 °C	-40 °C	2	1	Surface Mount	SOT-23-6	25 ns	17 ns	5 pC	20 Ohms	-105 dB	800 mOhm	15 V	2.7 V	SPDT	8 pF	8 pF
Renesas Electronics Corporation ISL43210AIHZ-T7A	1	6-SOT	3 nA	85 °C	-40 °C	2	1	Surface Mount	SOT-23-6	25 ns	17 ns	5 pC	20 Ohms	-105 dB	800 mOhm	15 V	2.7 V	SPDT	8 pF	8 pF
Renesas Electronics Corporation ISL43210IHZ-T	1	6-SOT	3 nA	85 °C	-40 °C	2	1	Surface Mount	SOT-23-6	25 ns	17 ns	5 pC	20 Ohms	-105 dB	800 mOhm	12 V	2.7 V	SPDT	8 pF	8 pF
Renesas Electronics Corporation ISL43210IH-T	1	6-SOT	3 nA	85 °C	-40 °C	2	1	Surface Mount	SOT-23-6	25 ns	17 ns	5 pC	20 Ohms	-105 dB	800 mOhm	12 V	2.7 V	SPDT	8 pF	8 pF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ISL43210 Datasheet

ISL43210IHZ-T | Datasheet

Product Change Notice EN
