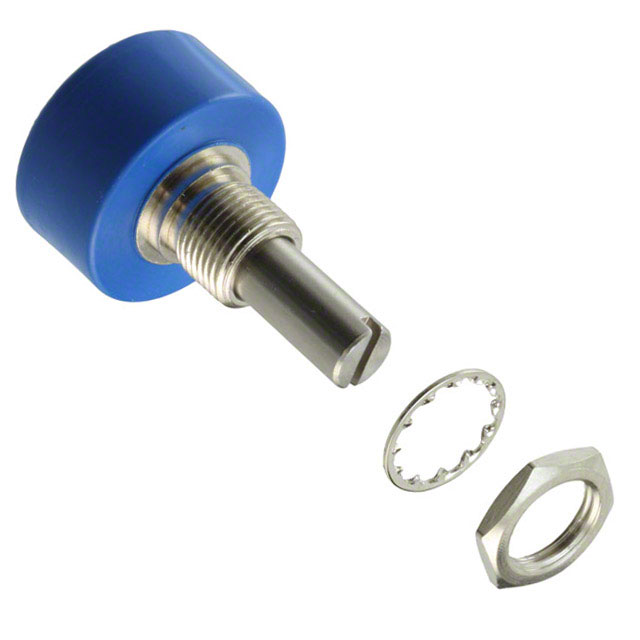

6639S-1-202

Active

Bourns Inc.

POT 2K OHM 1W PLASTIC LINEAR

Search across all available documentation for this part.

Active

Bourns Inc.

POT 2K OHM 1W PLASTIC LINEAR

Technical Specifications

Parameters and characteristics for this part

Part	Size - Body [diameter]	Size - Body [diameter]	Resistive Material	Rotation	Number of Turns	Bushing Thread	Power (Watts)	Actuator Length [z]	Actuator Length [z]	Resistance (Ohms)	Adjustment Type	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Actuator Type	Number of Gangs	Taper	Temperature Coefficient	Termination Style	Tolerance	Resistance (Ohms)
Bourns Inc. 6639S-1-203	22.23 mm	0.875 "	Conductive Plastic	Continuous	1	3/8-32	1 W	22.23 mm	0.875 in	20 kOhms	User Defined	6.34 mm	0.2497 in	Slotted	1	Linear	500 ppm/°C	Solder Turret	15 %
Bourns Inc. 6639S-1-202	22.23 mm	0.875 "	Conductive Plastic	Continuous	1	3/8-32	1 W	22.23 mm	0.875 in		User Defined	6.34 mm	0.2497 in	Slotted	1	Linear	500 ppm/°C	Solder Turret	15 %	2k
Bourns Inc. 6639S-1-503	22.23 mm	0.875 "	Conductive Plastic	Continuous	1	3/8-32	1 W	22.23 mm	0.875 in	50 kOhms	User Defined	6.34 mm	0.2497 in	Slotted	1	Linear	500 ppm/°C	Solder Turret	15 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 1W Solder Turret
